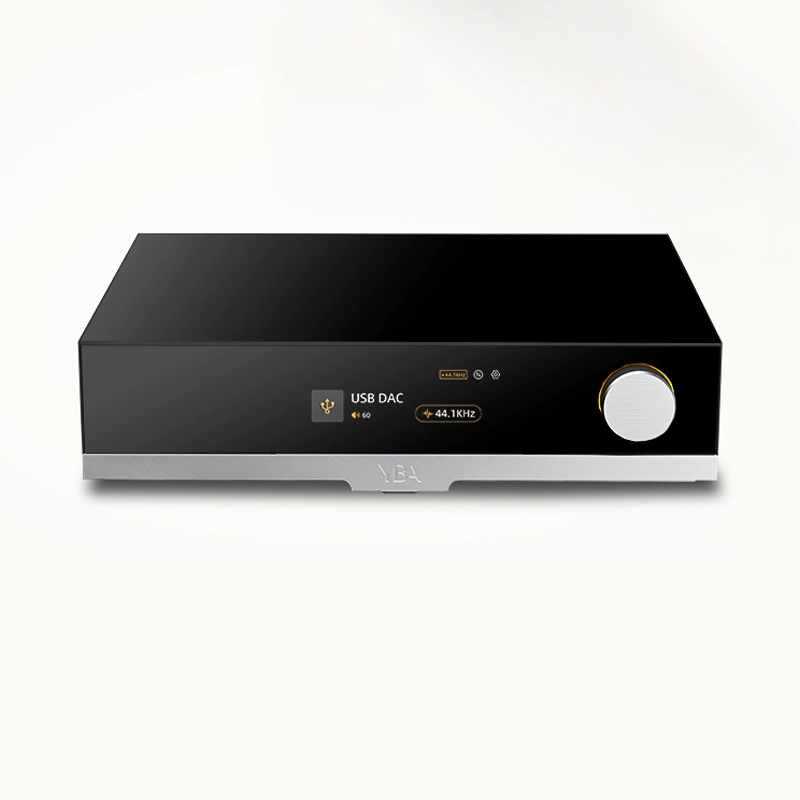

YBA DESIGN YD302 HIFI Audiophile OHM Dual BD34301 & XMOS XU316 Desktop DAC Touch Screen
Product Warranty
All items Guaranteed 100% Brand New In the original edition Box and Come from the original factory.
All items ONE-YEAR WARRANTY !!!
All items ONE-YEAR WARRANTY !!!
Shipping Time & Invoice Declare
All items ship with DHL/UPS/TNT/EMS, (DHL/UPS/TNT) About 3-7days delivery time, EMS About 7-15days delivery time.
We can Declare the Value of the Order as Customer's Remark!!!
We can Declare the Value of the Order as Customer's Remark!!!
Product Declaration
Specifications
Dimensions (including base): 320mm * 260mm * 80.5mm
Weight: 5.6kg
Screen: 5-inch (854 * 298) HD touchscreen

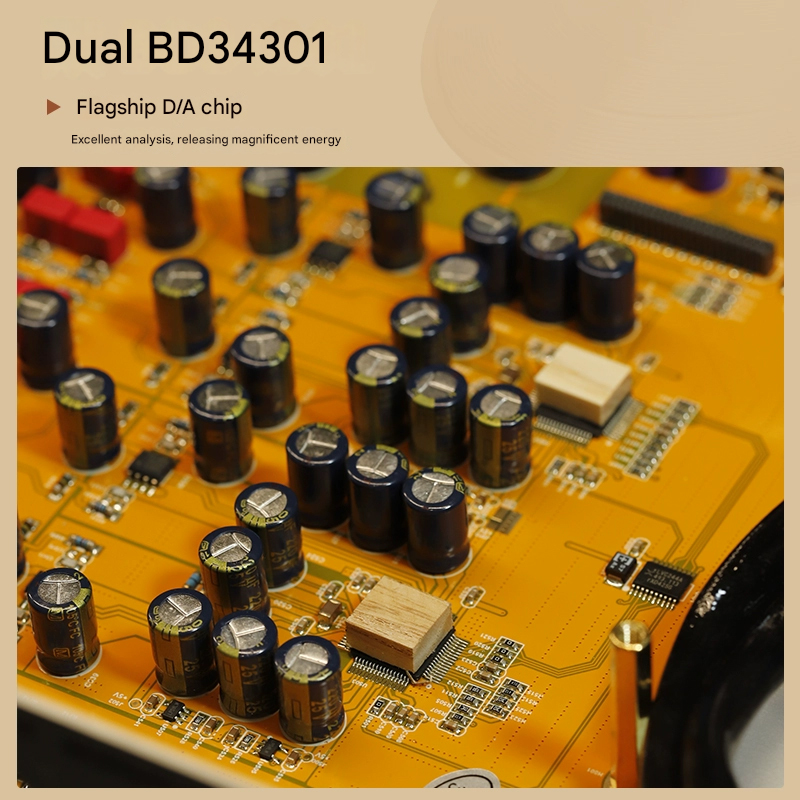

DAC: ROHM Dual BD34301
USB DAC: XMOS XU316

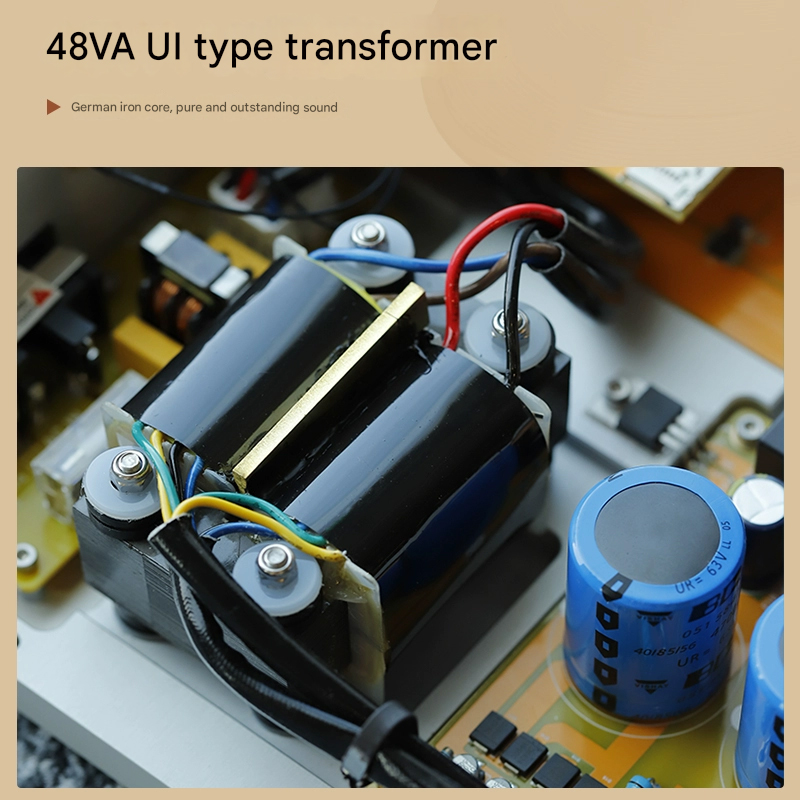

Power Supply: 48VA UI-type transformer
Accessories: Power cord, remote control, manual, warranty card

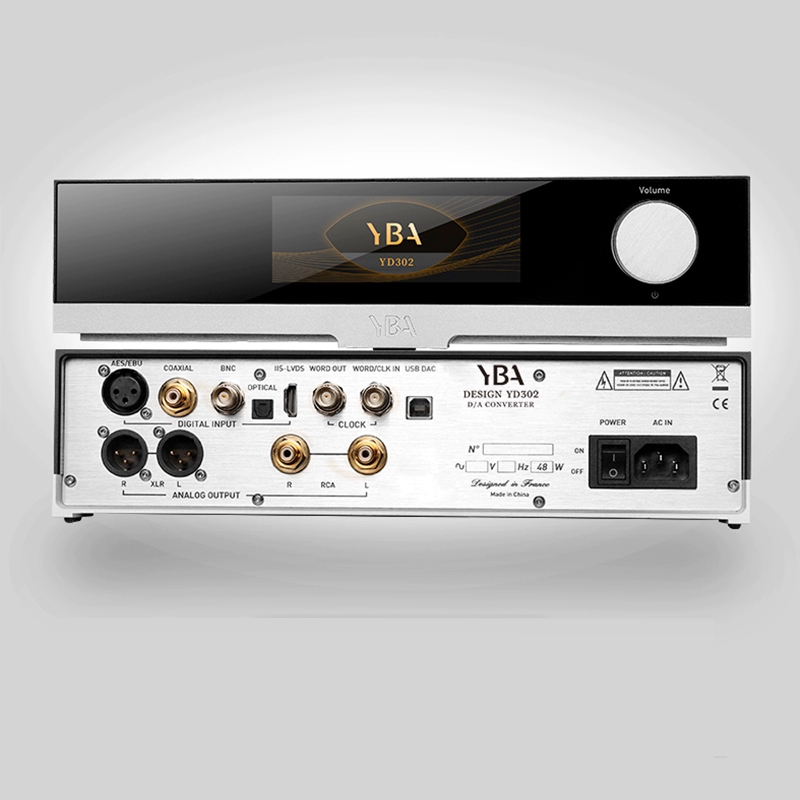

Digital Inputs: COAXIAL/OPTICAL/BNC/AES EBU/I2S
USB DAC

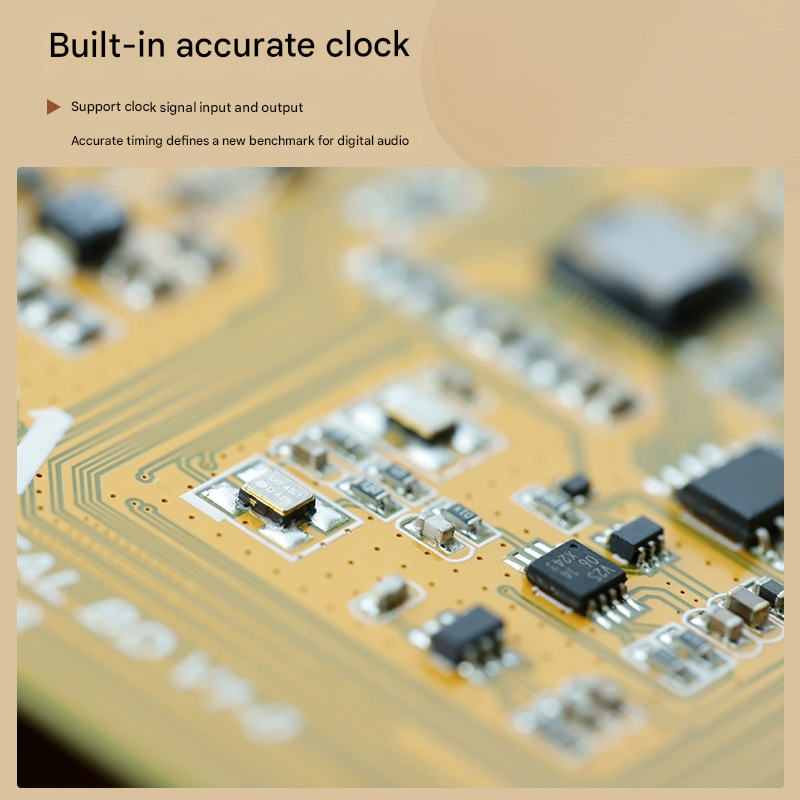

Clock Signal: 44.1kHz Clock Output, 44.1kHz/10MHz Clock Input
Analog Output: RCA/XLR (Fixed and Variable Volume)
RCA Output
Output Level: 2.4V
THD+N: 0.0006%
Frequency Response: 20Hz-40kHz
Dynamic Range: 120dB
Signal-to-Noise Ratio: 120dB
Noise: 112dB
XLR Output
Output Level: 4.8V
THD+N: 0.0006%
Frequency Response: 20Hz-40kHz
Dynamic Range: 120dB
Signal-to-Noise Ratio: 120dB
Noise: 112dB
