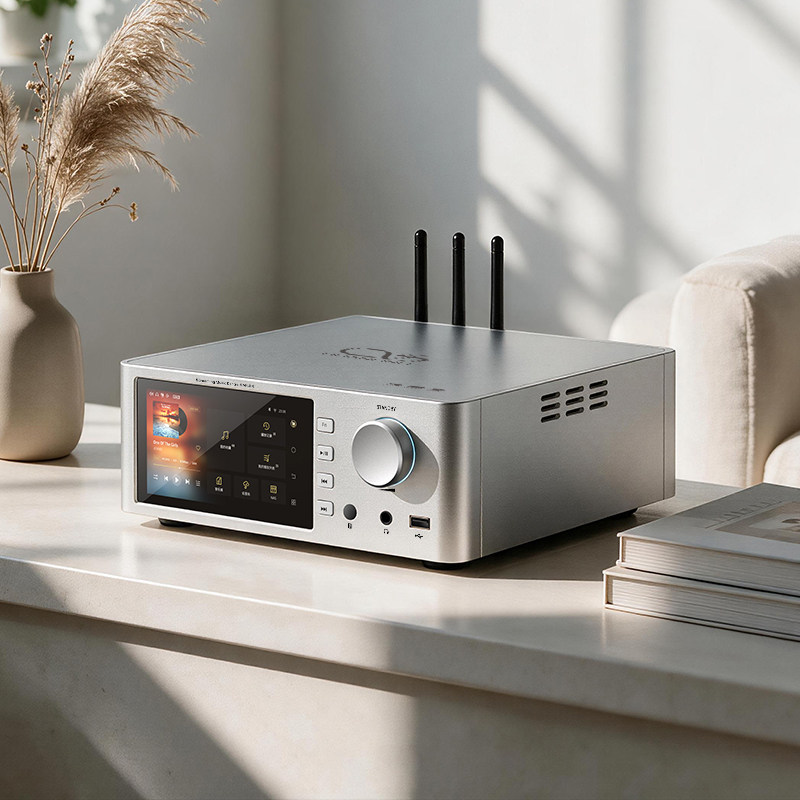

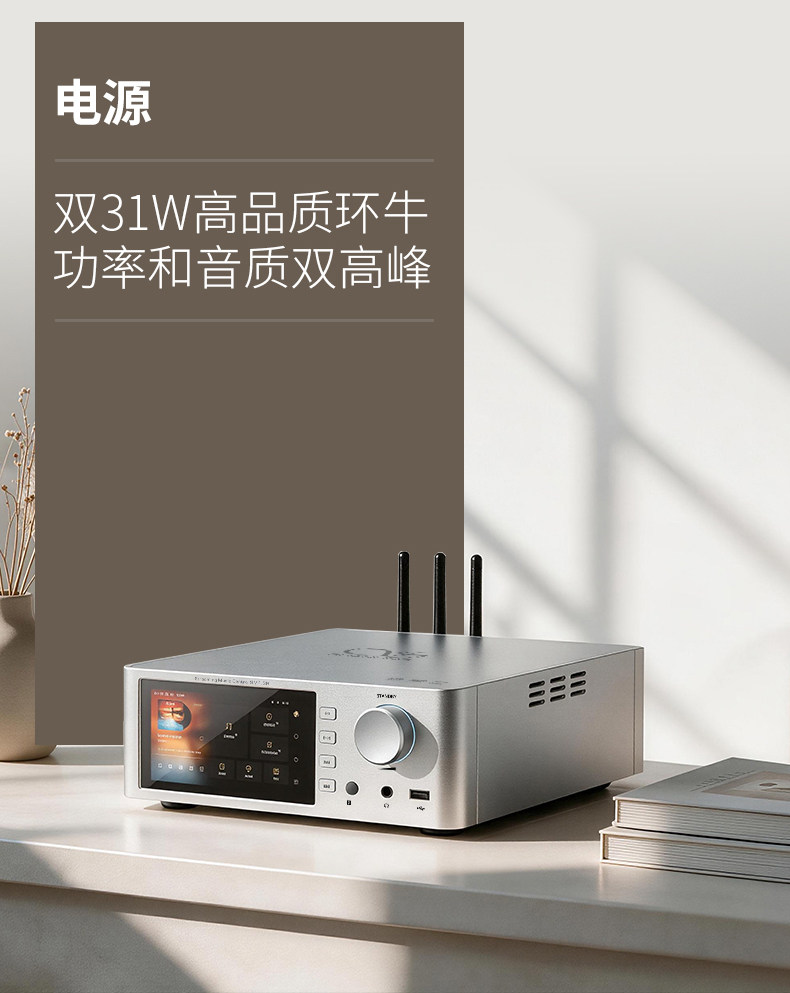

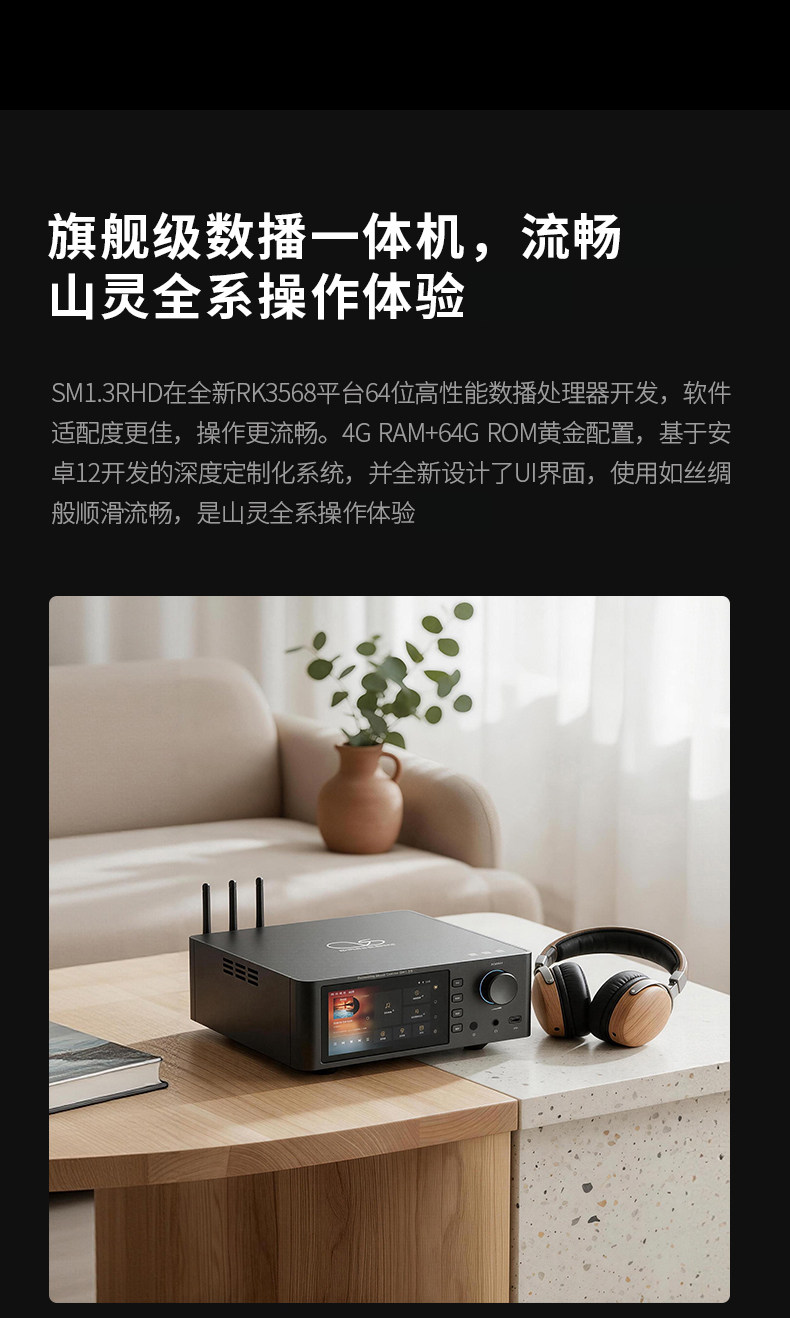

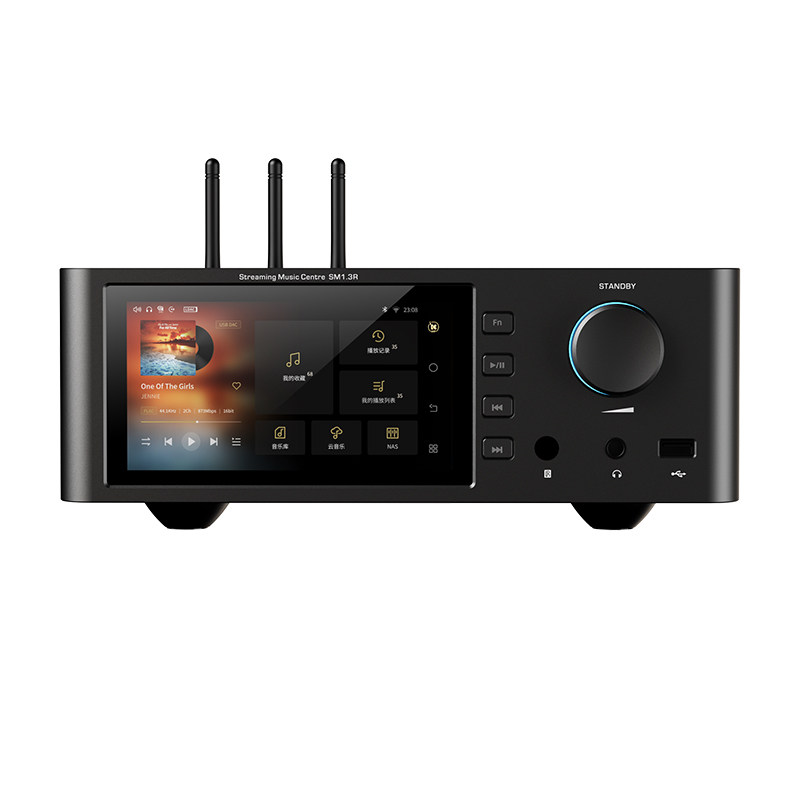

Shanling SM1.3R HD R2R Network Streaming Music Center Android Hi-Fi Audiophile DAC/Player
Product Warranty
All items Guaranteed 100% Brand New In the original edition Box and Come from the original factory.
All items ONE-YEAR WARRANTY !!!
All items ONE-YEAR WARRANTY !!!
Shipping Time & Invoice Declare
All items ship with DHL/UPS/TNT/EMS, (DHL/UPS/TNT) About 3-7days delivery time, EMS About 7-15days delivery time.
We can Declare the Value of the Order as Customer's Remark!!!
We can Declare the Value of the Order as Customer's Remark!!!
Product Declaration

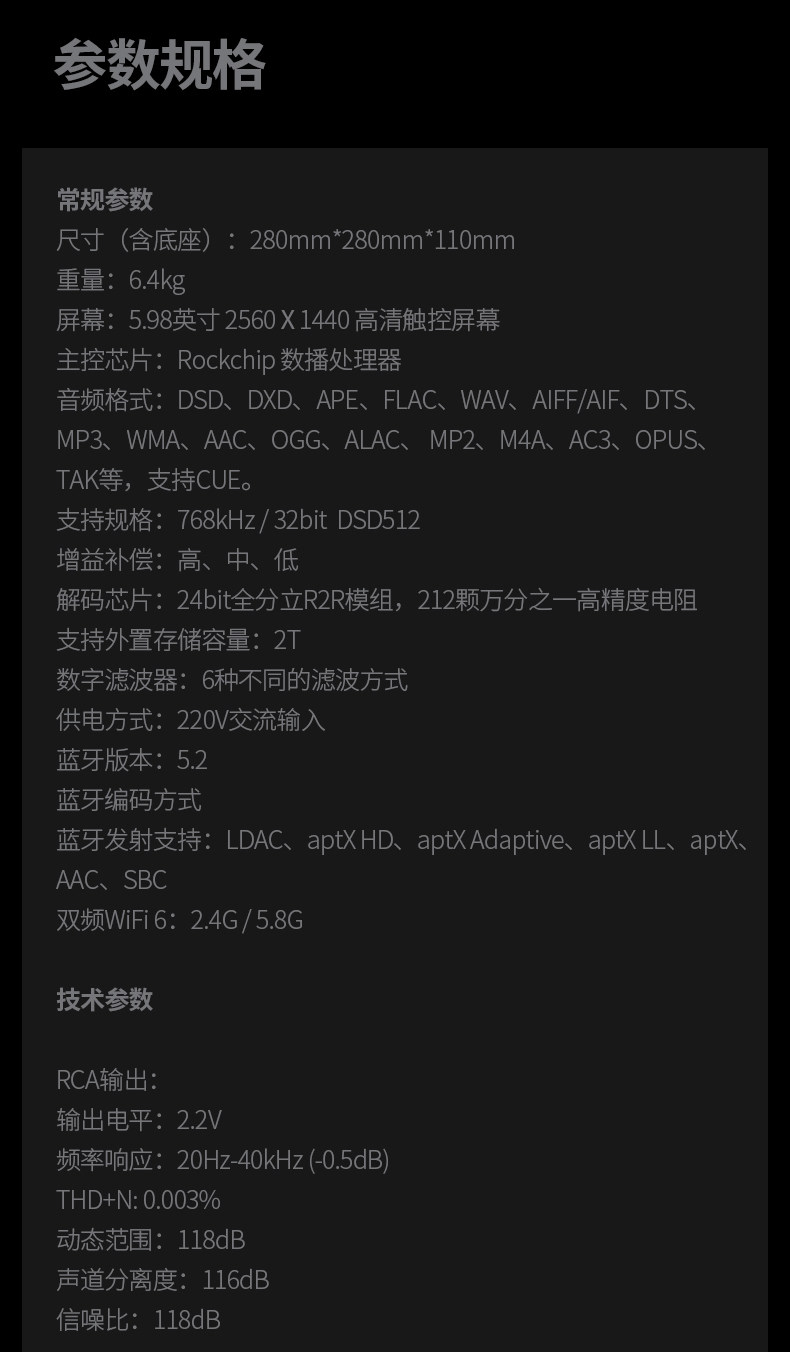

Specifications:
Dimensions (including base): 280mm x 280mm x 110mm
Weight: 6.4kg
Display: 5.98-inch 2560x1440 HD touchscreen
Main Processor: Rockchip digital audio processor
Audio Formats: DSD, DXD, APE, FLAC, WAV, AIFF/AIF, DTS,
MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS,
TAK, etc.; supports CUE. Supported Formats: 768kHz/32-bit, DSD512
Gain Settings: High, Medium, Low

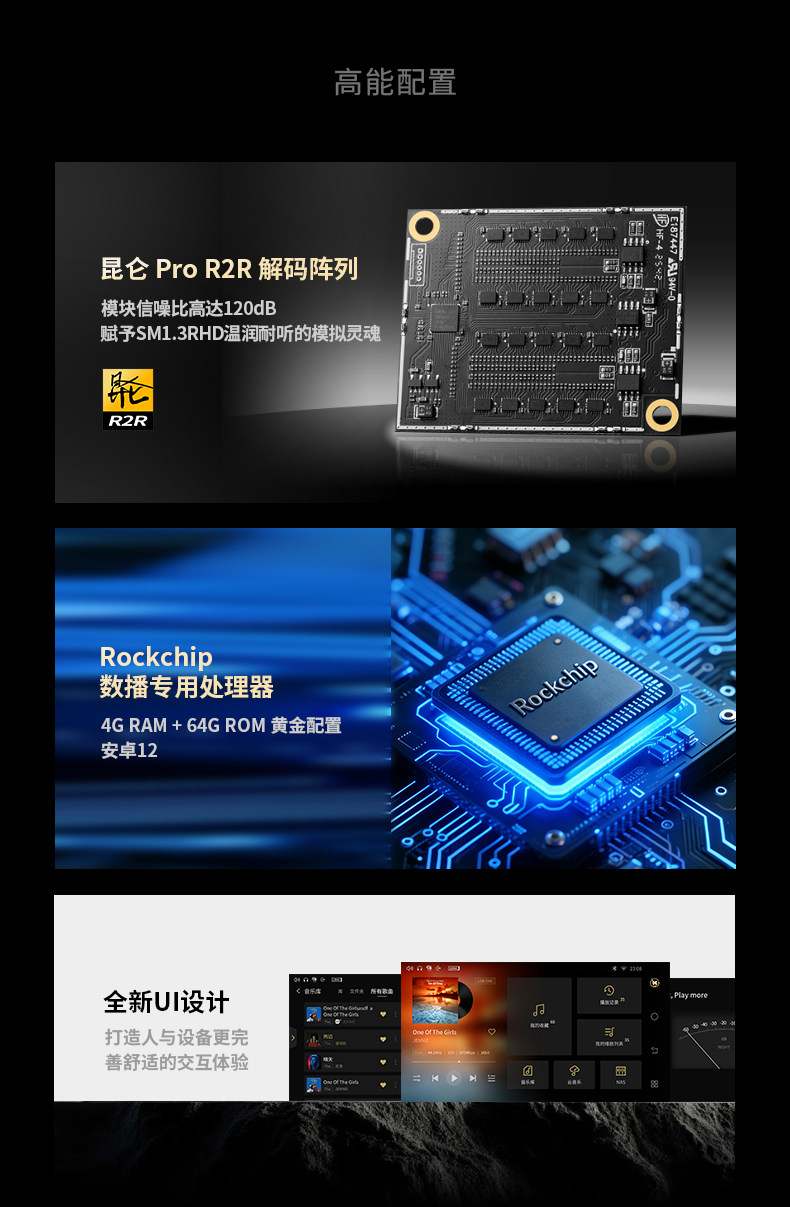

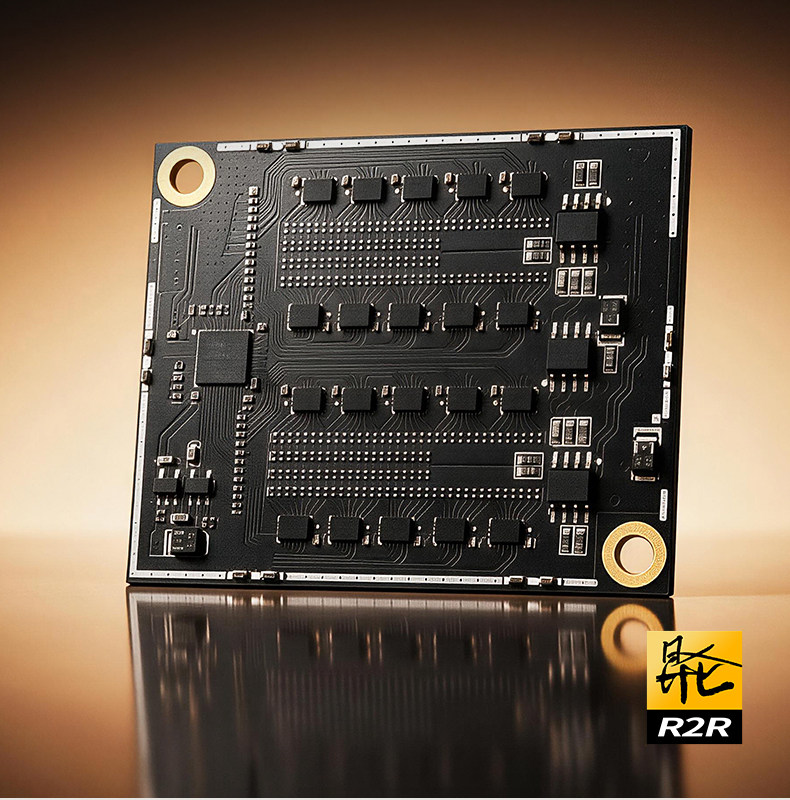

DAC Chip: 24-bit fully discrete R2R module, featuring 212 ultra-high-precision (0.01%) resistors
External Storage Support: Up to 2TB
Digital Filters: 6 different filter modes

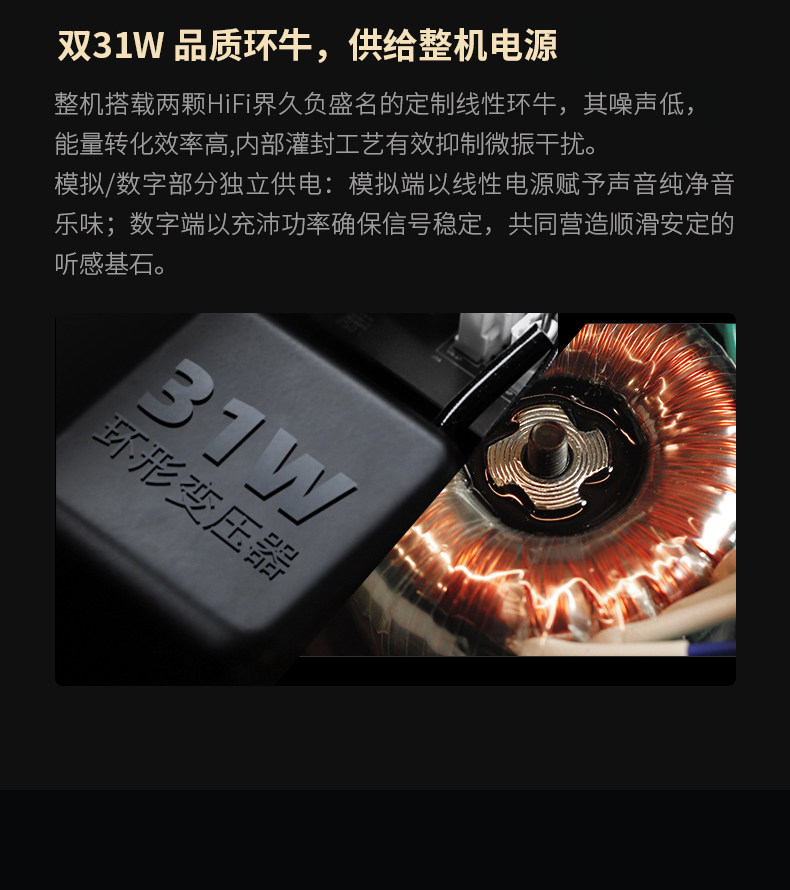

Power Supply: 220V AC input

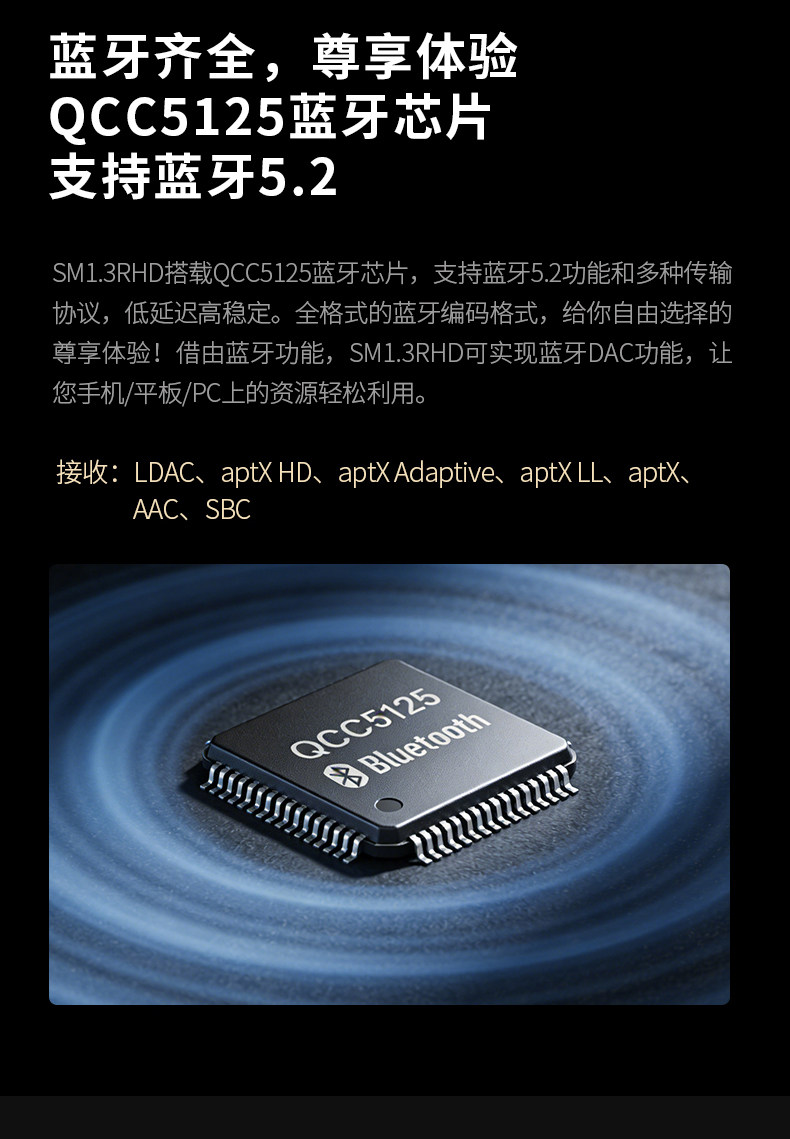

Bluetooth Version: 5.2
Bluetooth Codecs / Transmission Support: LDAC, aptX HD, aptX Adaptive, aptX LL, aptX, AAC, SBC

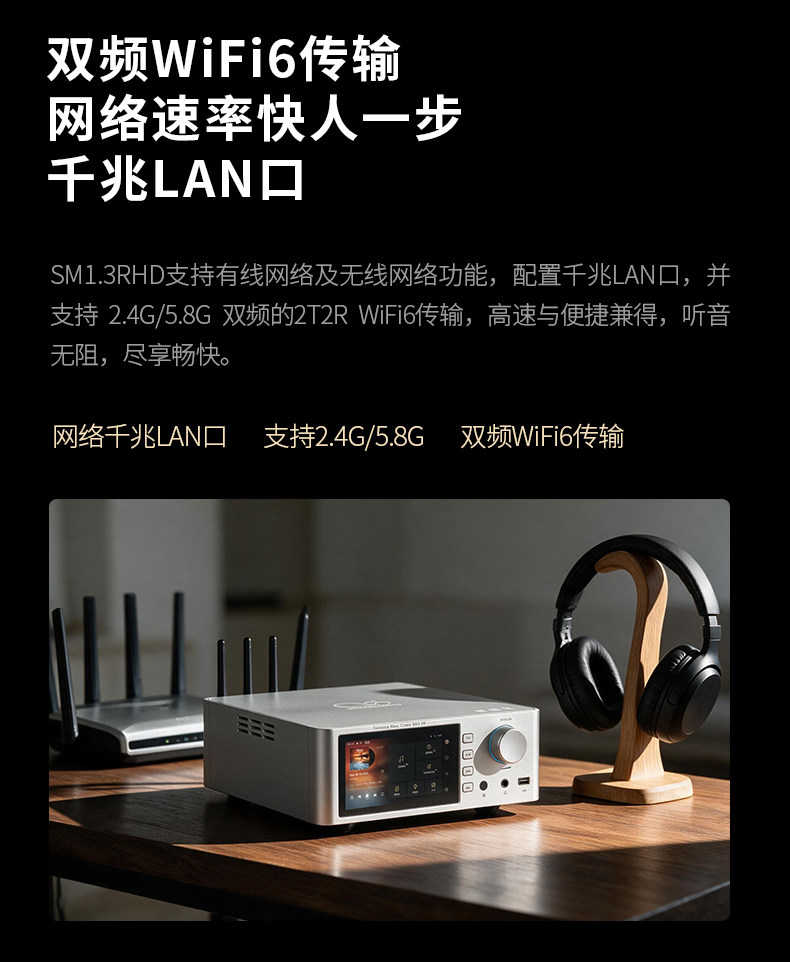

Dual-band Wi-Fi 6: 2.4GHz/5.8GHz
Technical Specifications:
RCA Output:
Output Level: 2.2V
Frequency Response: 20Hz–40kHz (-0.5dB)
THD+N: 0.003%
Dynamic Range: 118dB
Channel Separation: 116dB
SNR: 118dB

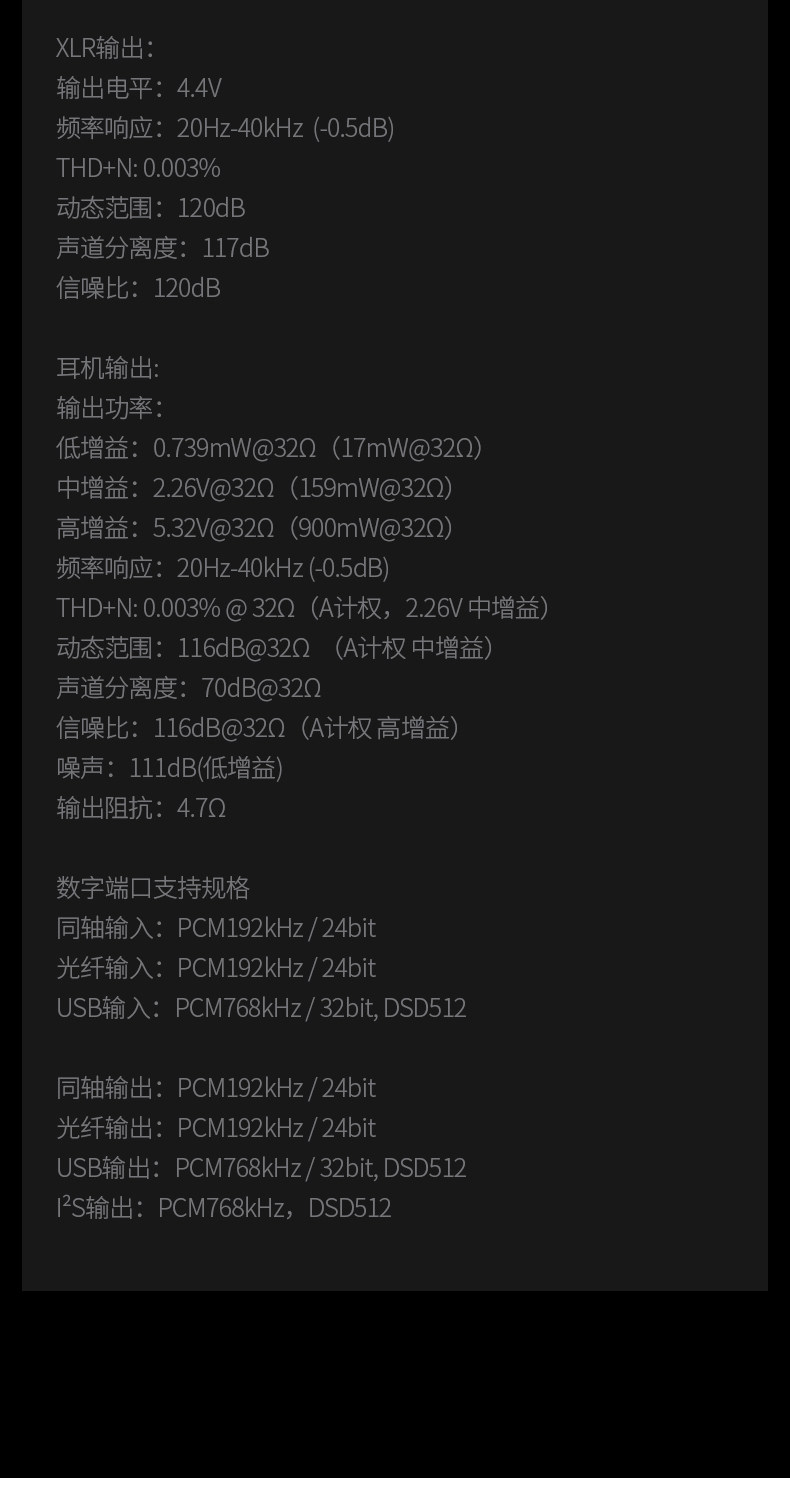

XLR Output:
Output Level: 4.4V
THD+N: 0.003%
Dynamic Range: 120dB
Channel Separation: 117dB
SNR: 120dB
Frequency Response: 20Hz–40kHz (-0.5dB)
Headphone Output:
Output Power:
Low Gain: 0.739mW @ 32Ω (17mW @ 32Ω)
Medium Gain: 2.26V @ 32Ω (159mW @ 32Ω)
High Gain: 5.32V @ 32Ω (900mW @ 32Ω)
Frequency Response: 20Hz–40kHz (-0.5dB)
THD+N: 0.003% @ 32Ω (A-weighted, 2.26V Medium Gain)
Dynamic Range: 116dB @ 32Ω (A-weighted, with gain)
Channel separation: 70dB @ 32Ω
Signal-to-noise ratio: 116dB @ 32Ω (A-weighted, high gain)
Noise: 111dB (low gain)
Output impedance: 4.7Ω

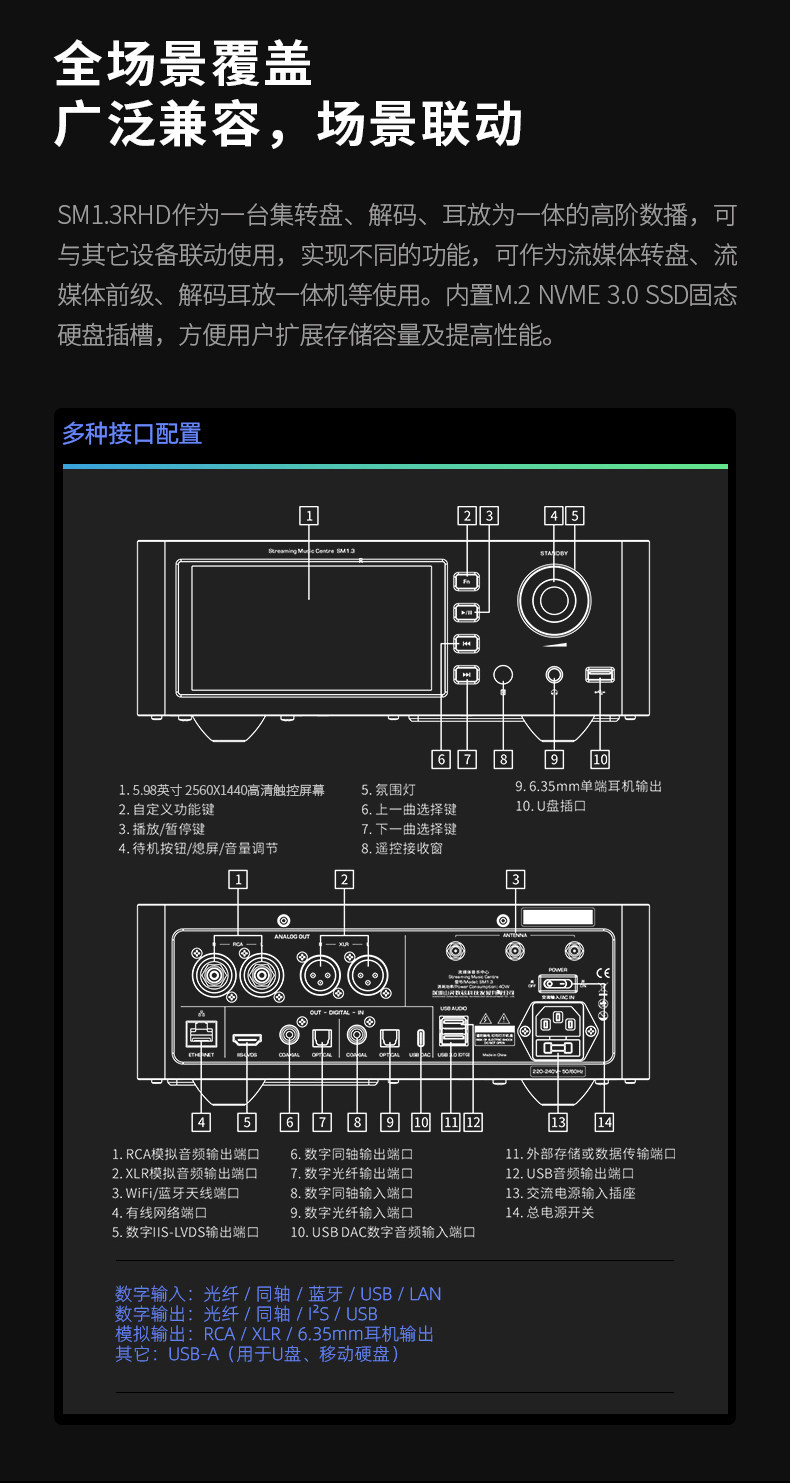

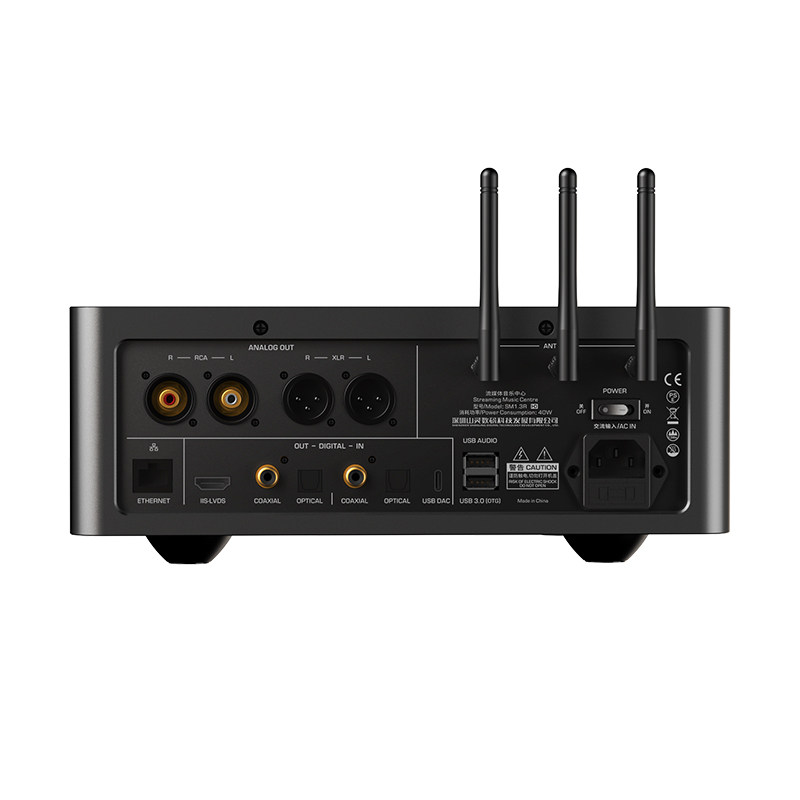

Digital port specifications:
Coaxial input: PCM 192kHz/24bit;
Optical input: PCM 192kHz/24bit;

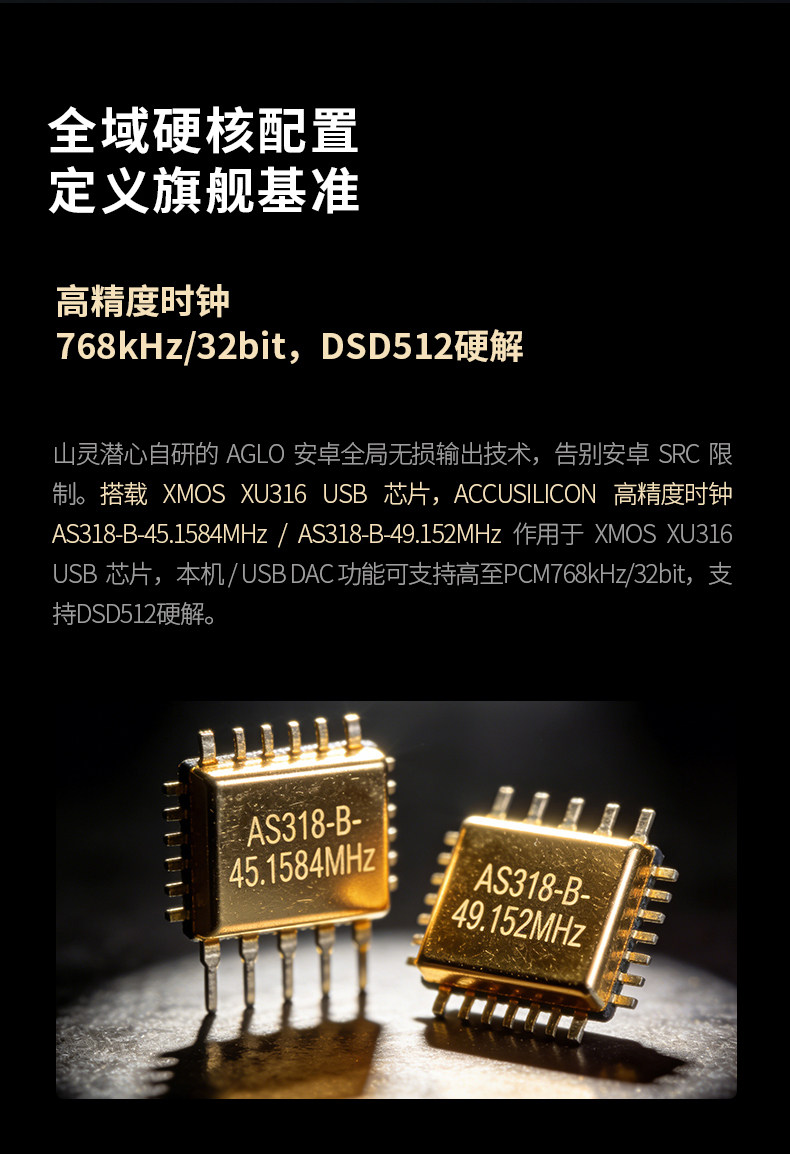

USB input: PCM 768kHz/32bit, DSD512
Coaxial output: PCM 192kHz/24bit;
Optical output: PCM 192kHz/24bit;
USB output: PCM 768kHz/32bit, DSD512;
I²S output: PCM 768kHz, DSD512
