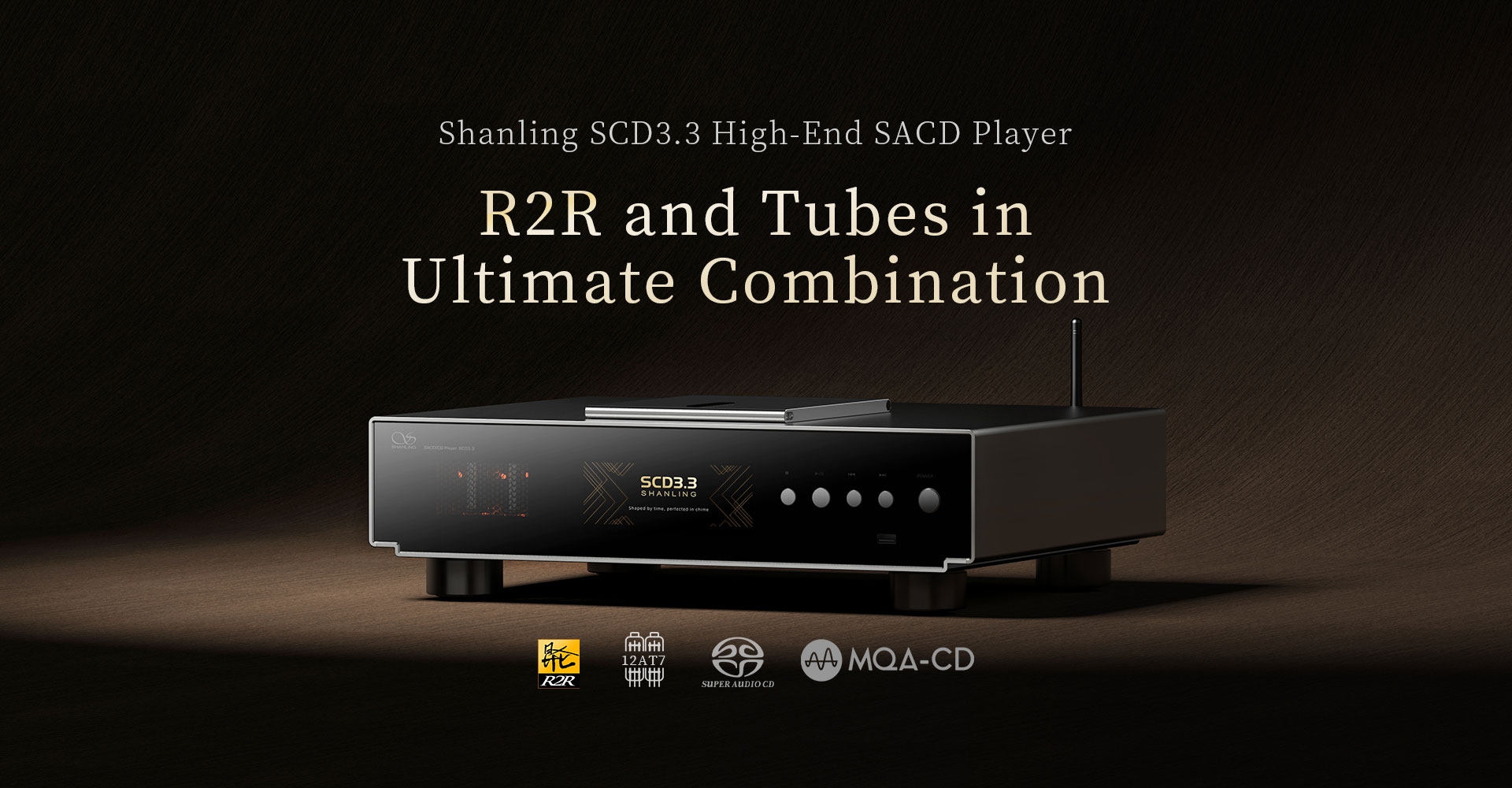

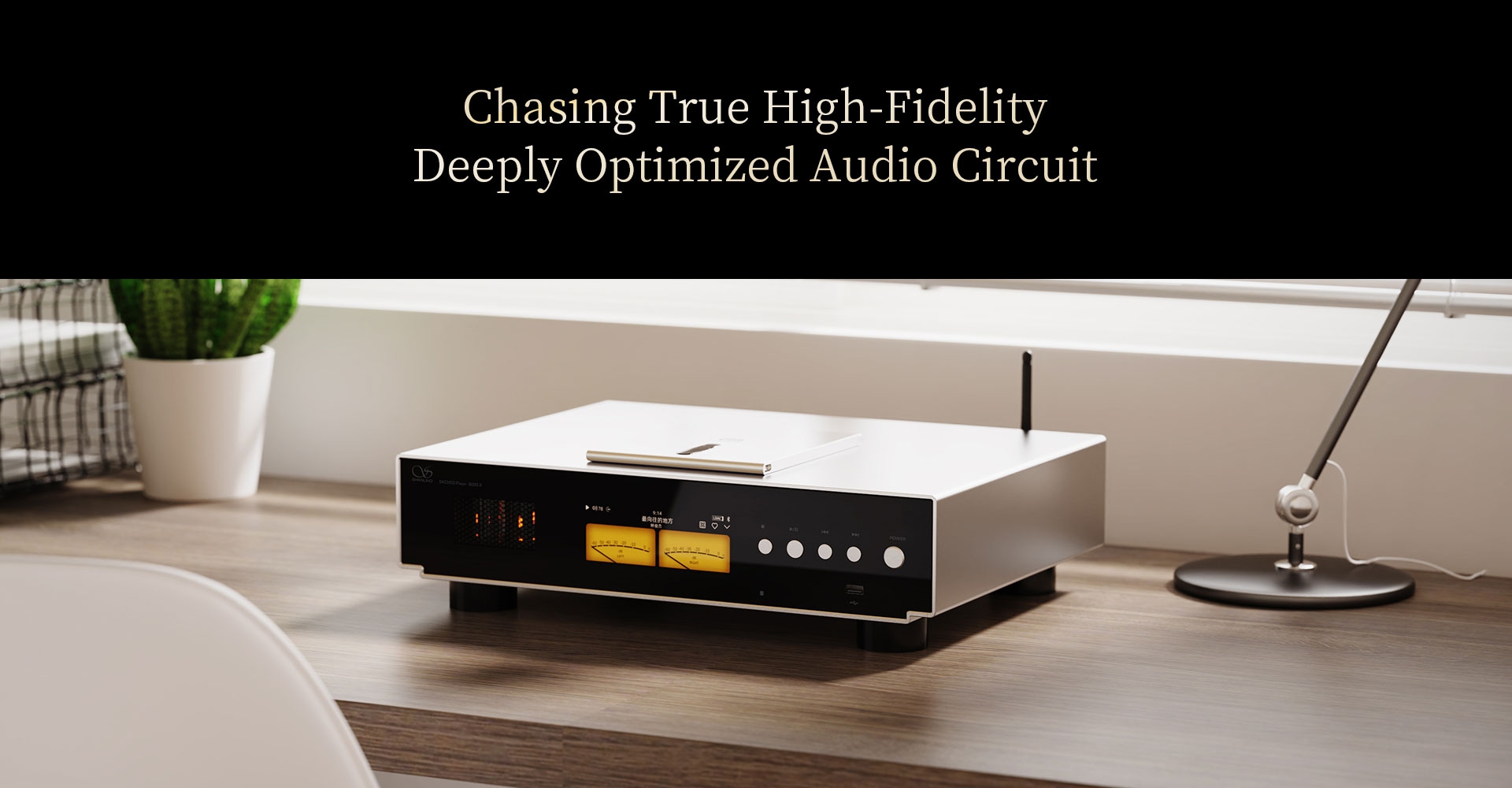

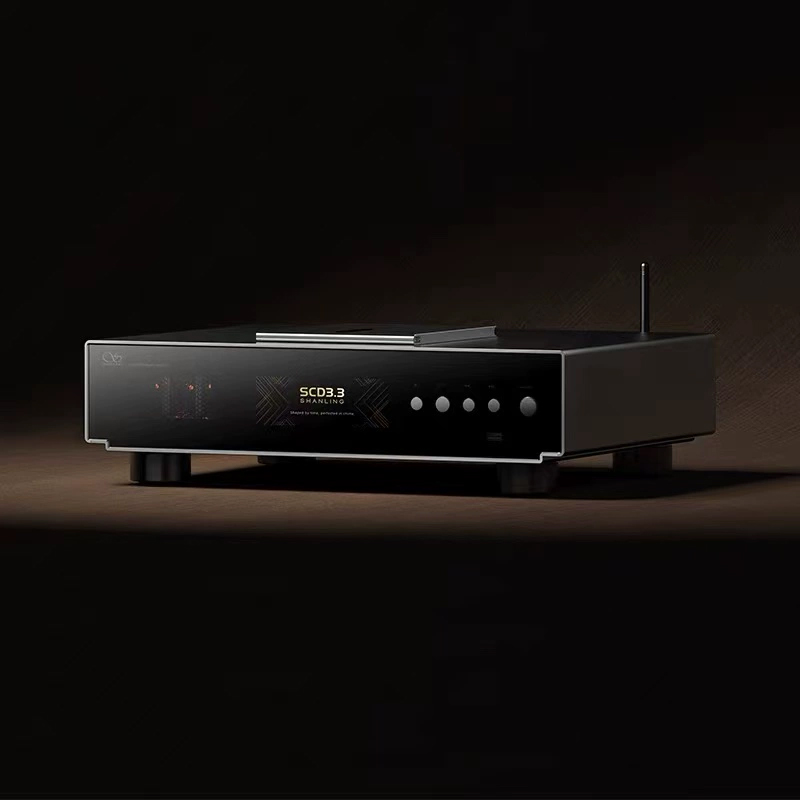

Shanling SCD3.3 High-End SACD Player R2R and Tubes in Ultimate Combination

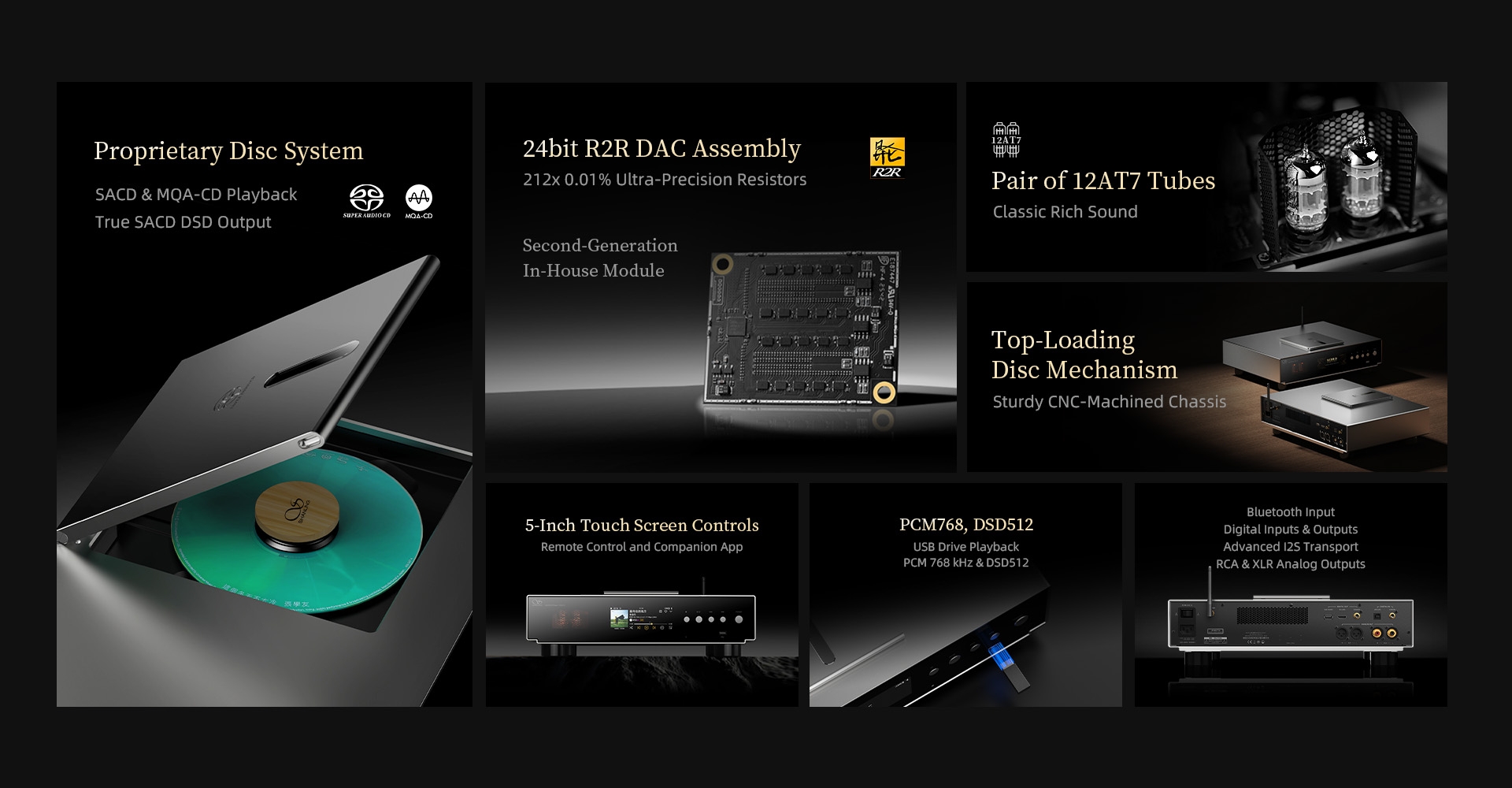

Features:
Proprietary Disc System
SACD & MQA-CD PlaybackTrue SACD DSD Output

24bit R2R DAC Assembly
212x 0.01% Ultra-Precision Resistors

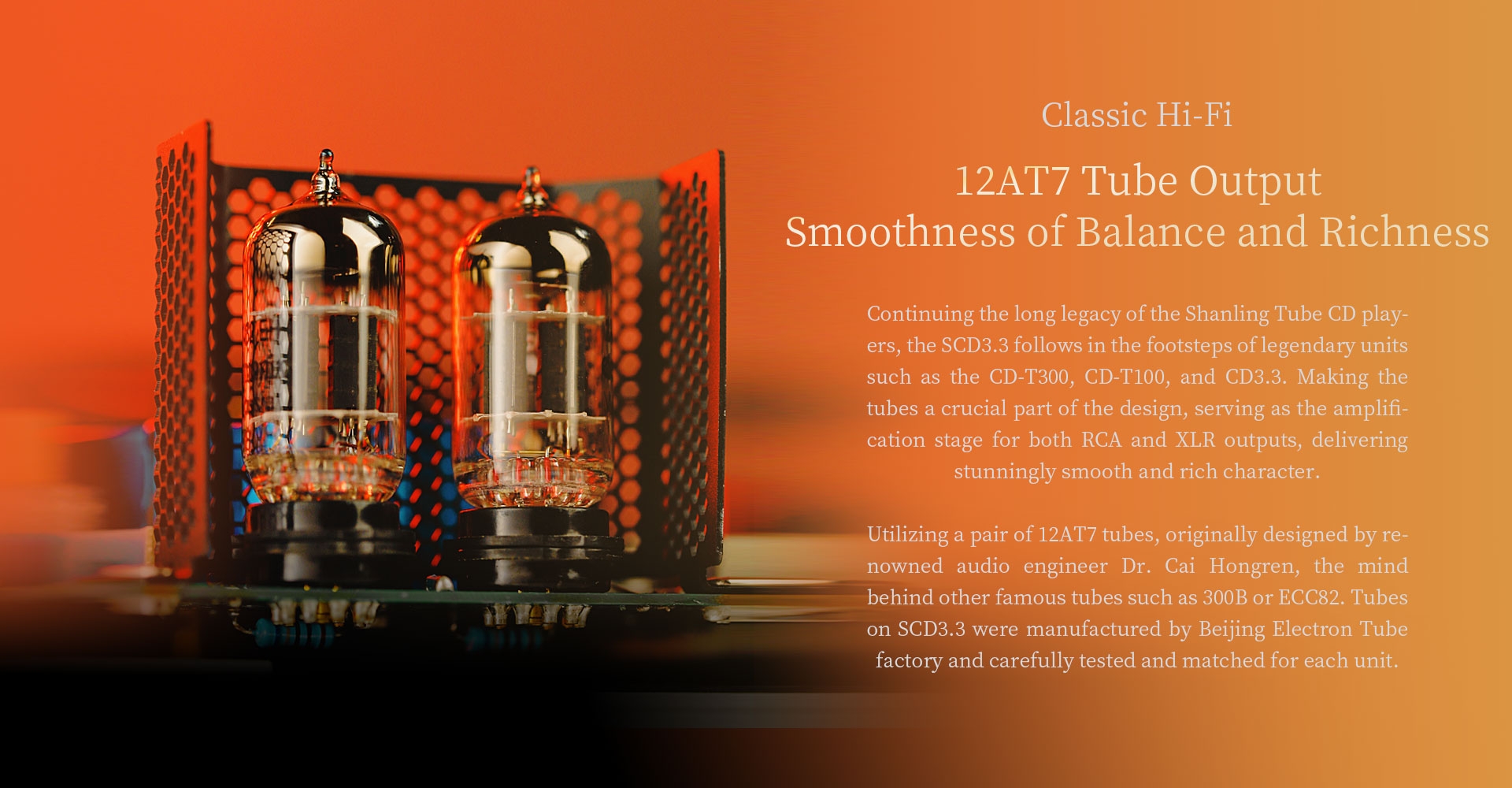

Pair of 12AT7 Tubes
Classic Rich Sound

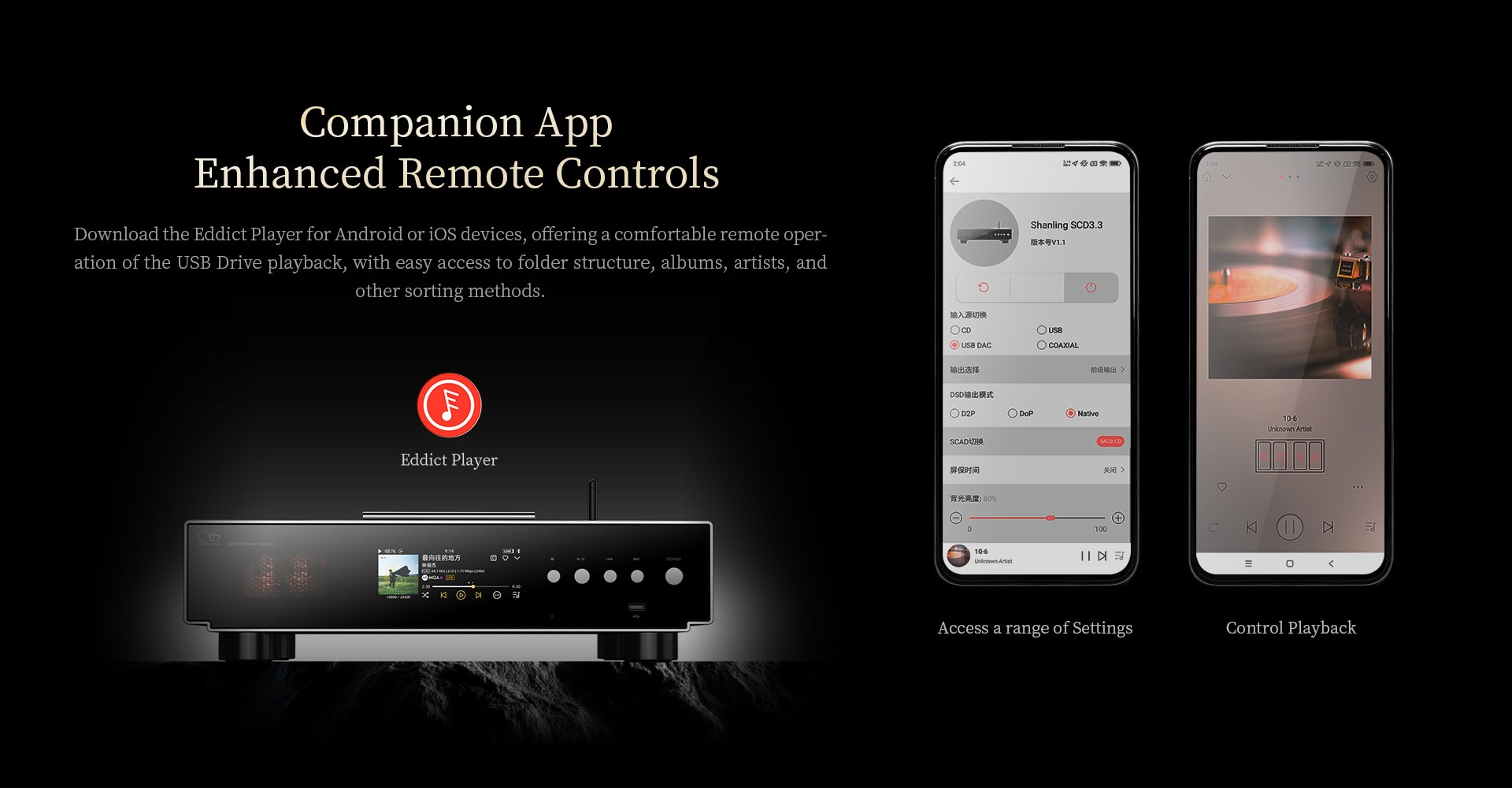

5-Inch Touch Screen Controlsemote Control and Companion App

PCM768.DSD512USB Drive PlaybackPCM 768 kHz & DSD512

Bluetooth inputDigital inputs & OutputsAdvanced l2S TransportRCA & XLR Analog outputs

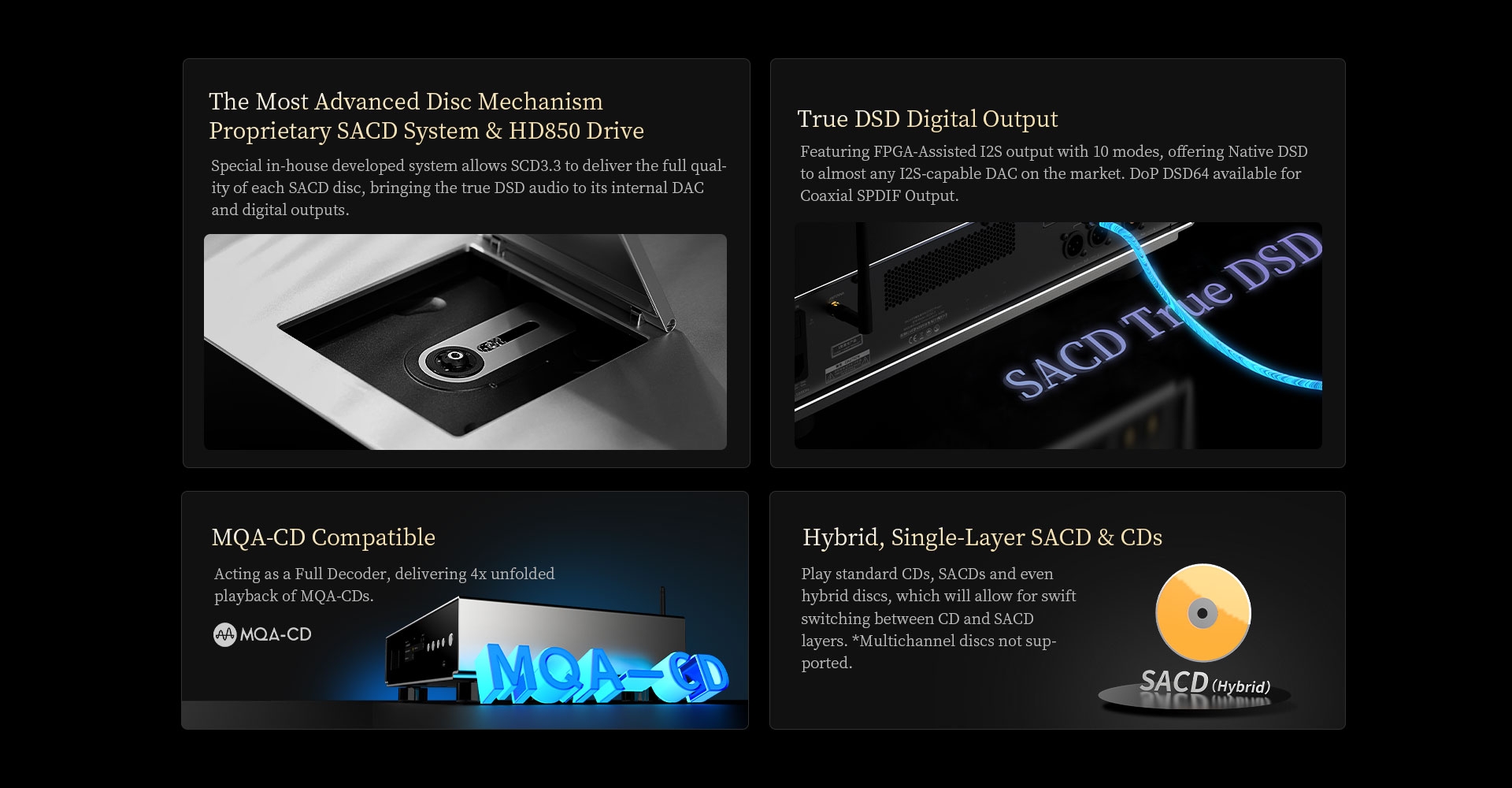

The Most Advanced Disc Mechanism
Proprietary SACD System & HD850 Drive
Special in-house developed system allows SCD3.3 to deliver the full quality of each SACD disc, bringing the true DSD audio to its internal DACand digital outputs.

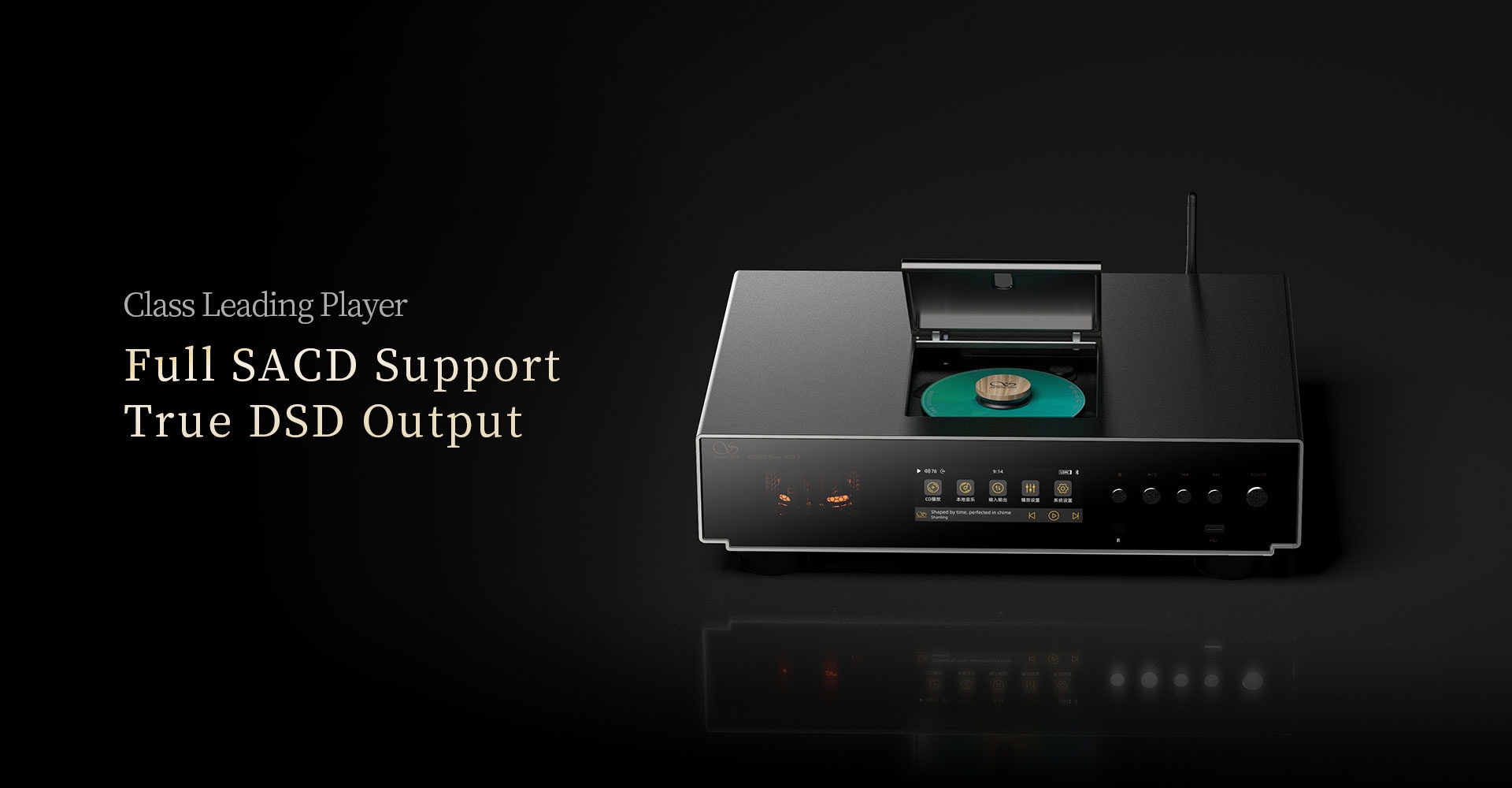

True DSD Digital Output
Featuring FPGA-Assisted I2S output with 10 modes, offering Native DSDto almost any I2S-capable DAC on the market. DoP DSD64 available forCoaxial SPDIF Output.

MOA-CD Compatible
Acting as a Full Decoder, delivering 4x unfoldedplayback of MOA-CDs.

Hybrid, Single-Layer SACD & CDs
Play standard CDs, SACDs and evenhybrid discs, which will allow for swift switching between CD and SACD
layers. *Multichannel discs not sup
ported.

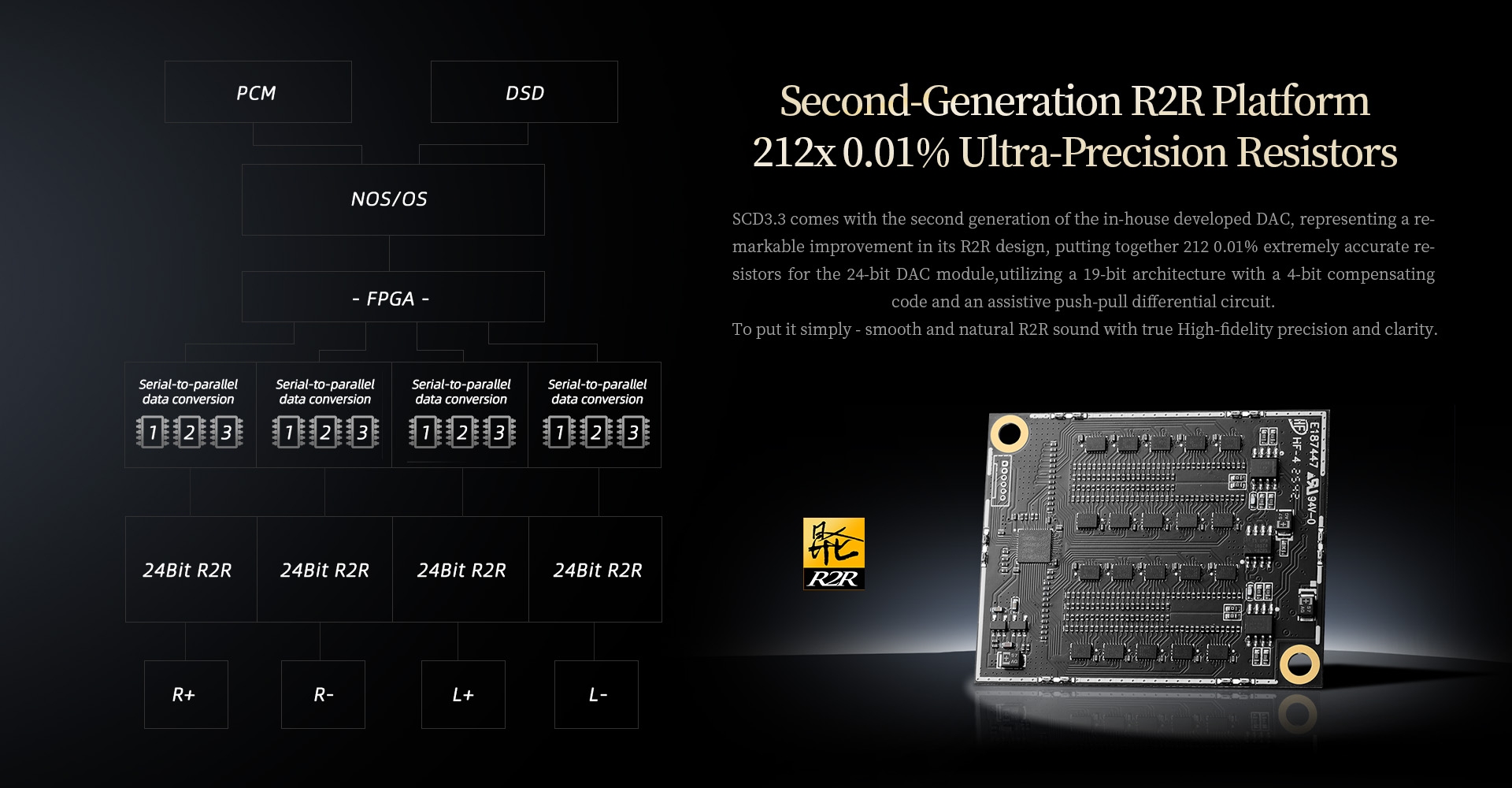

Second-Generation R2R Platform212x0.01% Ultra-Precision Resistors
SCD3.3 comes with the second generation of the in-house developed DAC, representing a re.markable improvement in its R2R design, putting together 212 0.01% extremely accurate re.sistors for the 24bit DAC module,utilizing a 19-bit architecture with a 4-bit compensating
code and an assistive push-pull differential circuit.
To put it simply - smooth and natural R2R sound with true High-fdelity precision and clarity.

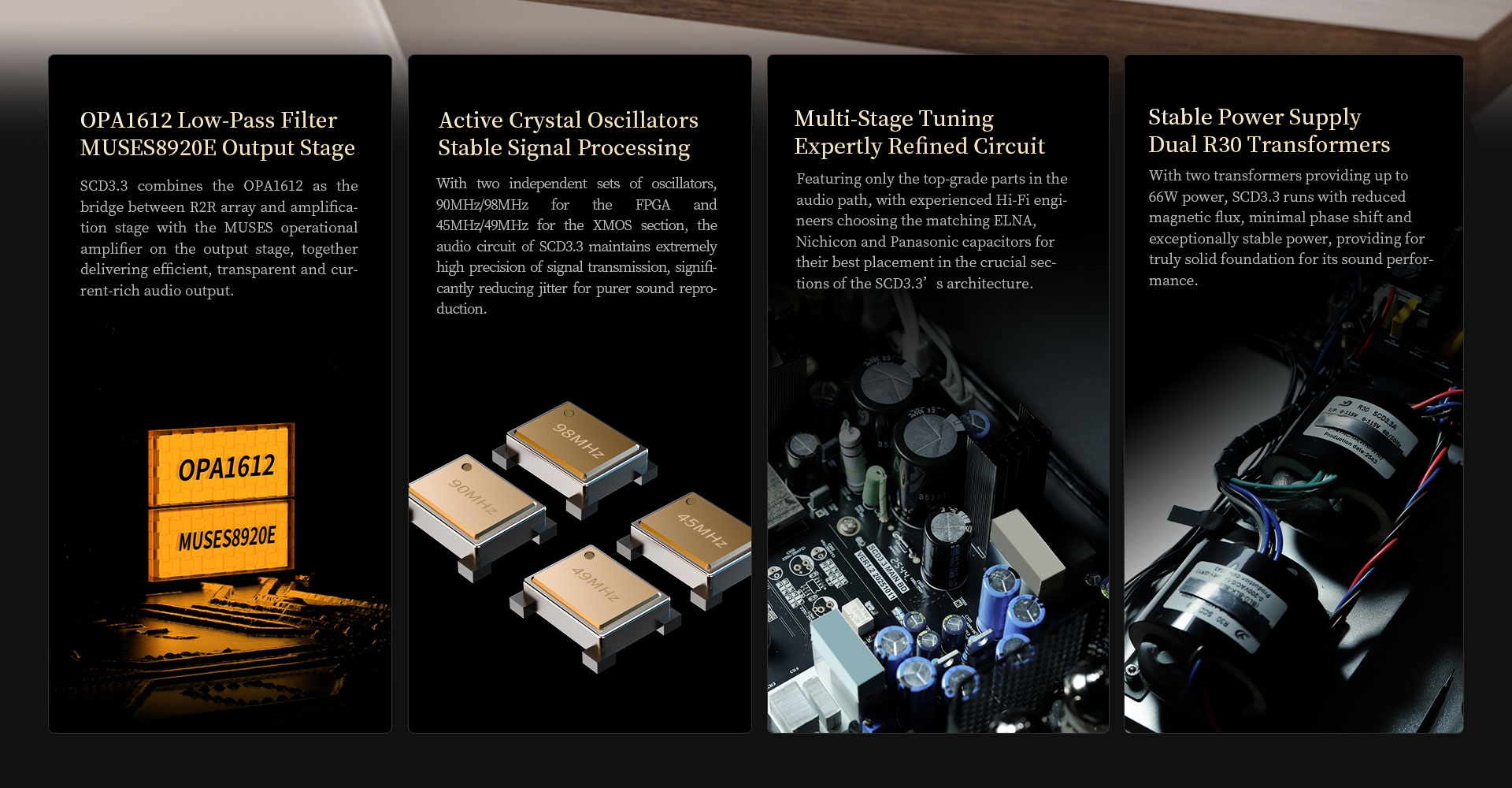

OPA1612 Low-Pass FilterMUSES8920E Output Stage
SCD3.3 combines the OPA1612 as thebridge between R2R array and amplification stage with the MUSES operational amplifer on the output stage, togetherdelivering effcient, transparent and current-rich audio output.

Active CrystalOscillatorsStable Signal Processing
With two independent sets of oscillators90MHIz/98MHzforandtheFPGA45MHz/49MHz for the XMos section, theaudio circuit of ScD3.3 maintains extremelyhigh precision of signal transmissioon, signifcantly reducing jitter for purer sound reproduction.

Multi-Stage TuningExpertly Refined circuit
Featuring only the top-grade parts in theaudio path, with experienced Hi-Fi engineers choosing the matching ELNA,Nichicon and Panasonic capacitors fortheir best placement in the crucial sections of the SCD3.3’s architecture.

Stable Power Supply DualR30 Transformers
With two transformers providing up to66W power, ScD3.3 runs with reducedmagnetic fux, minimal phase shift andexceptionally stable power, providing fortruly solid foundation for its sound perfor
mance.

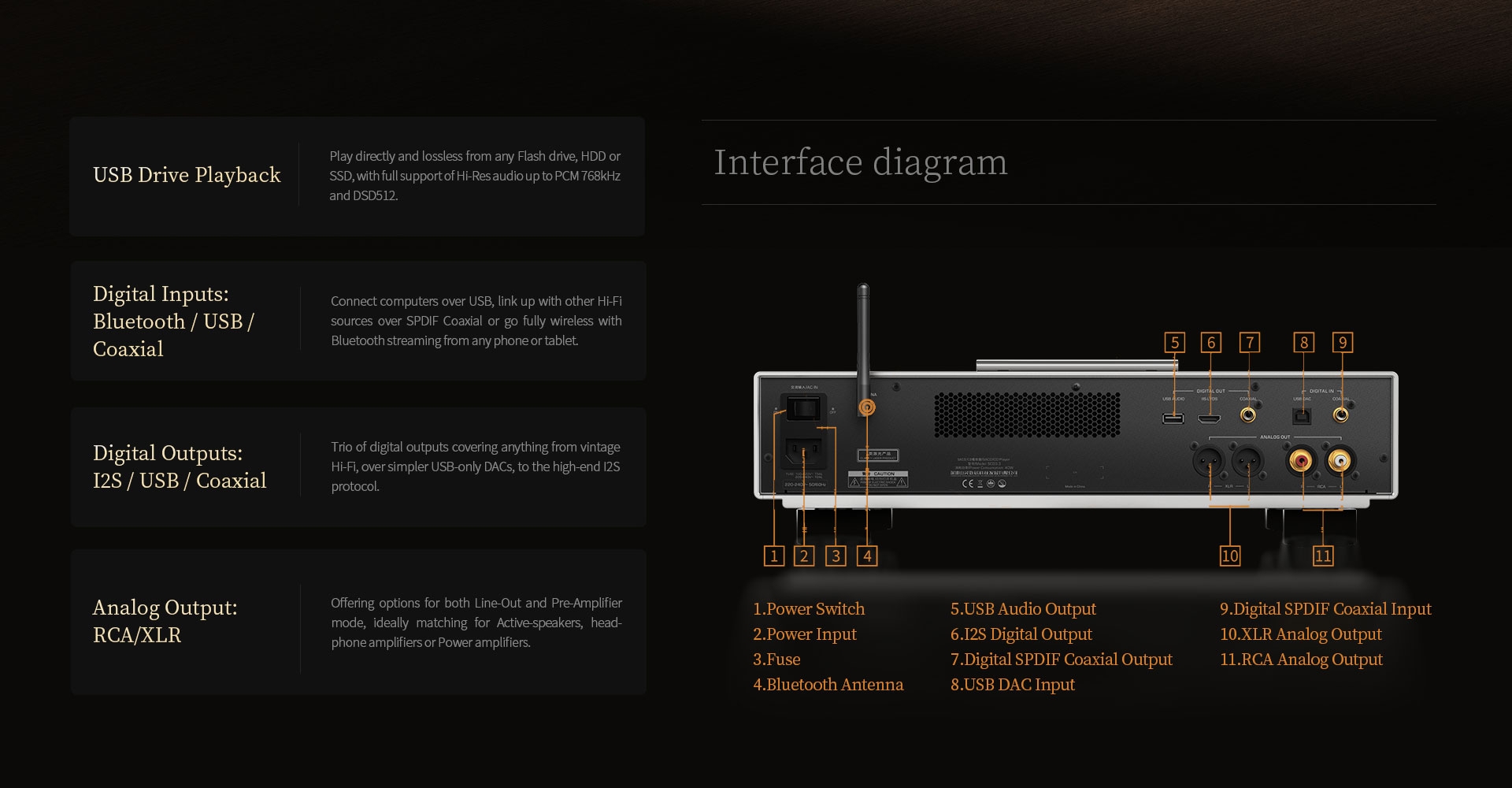

USB Drive Playback
Play directly and lossless from any Flash drive, HDD orSSD, with full support ofHi-Res audio up to PCM 768kHzand DSD512.

Digital Inputs:Bluetooth/USB/Coaxial
Connect computers over USB, link up with other Hi-Fi source over SPDlF Coaxial or go fully wireless withBluetooth streaming from any phone or tablet.

Digital Outputs:I2S/USB/Coaxial
Trio of digital outputs covering anything from vintageHi-Fi, over simpler USB-only DACs, to the high-end 12Sprotocol.

Analog Output:RCA/XLR
Offering options for both Line-Out and Pre-Amplifiermode, ideally matching for Active-speakers, headphone amplifiers or Power amplifiers.

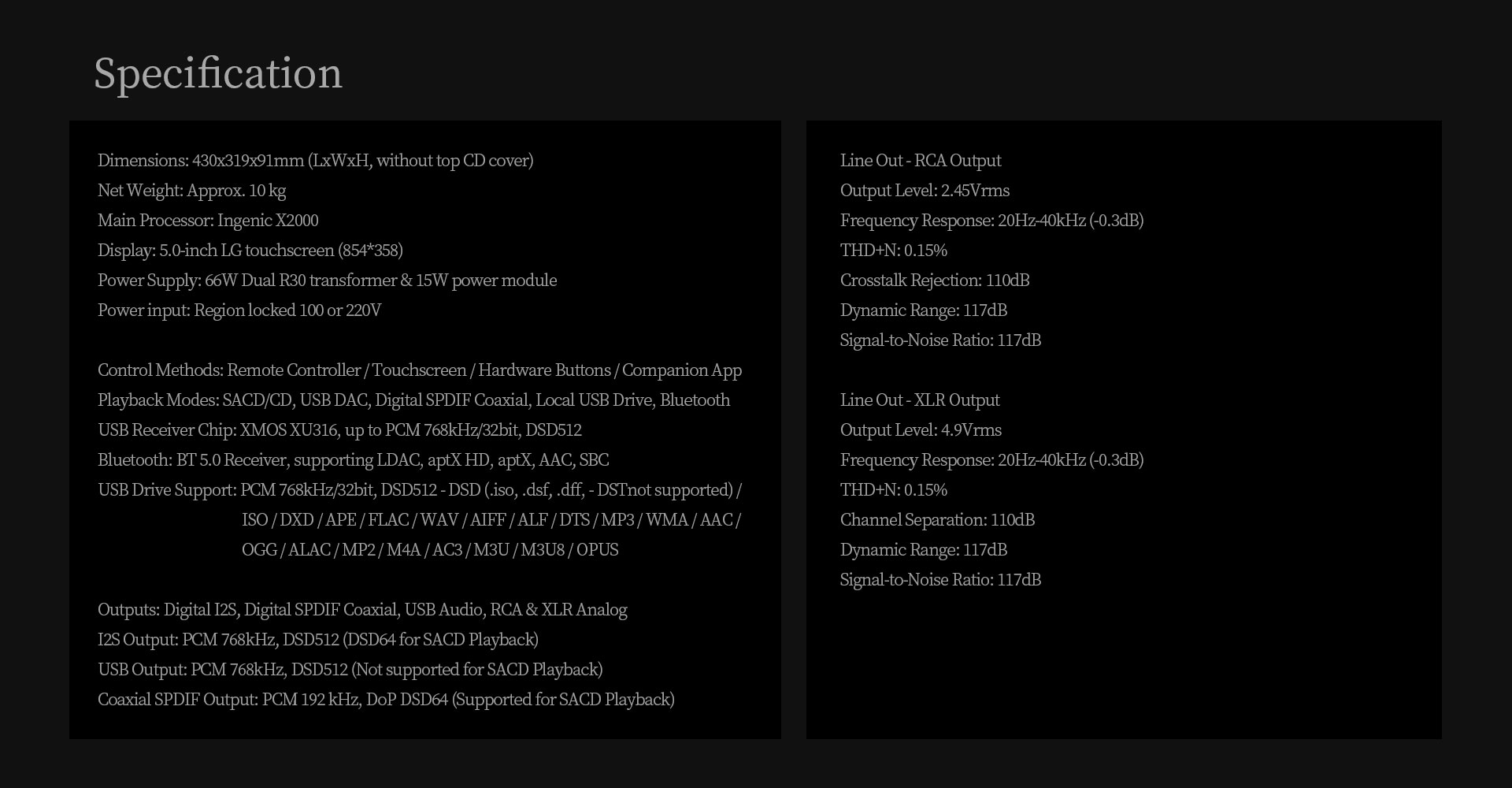

Specification:
Dimensions: 430x319x9lmm(LxWxH, without top CD cover)
Net Weight: Approx. 10 kg
Main Processor: Ingenic X2000
Display: 5.0-inch LG touchscreen (854*358)
Power Supply: 66W Dual R30 transformer & 15W power module
Power input: Region locked 100 or 220V
Control Methods: Remote Controller /Touchscreen /Hardware Buttons /Companion App
Playback Modes: SACD/CD, USB DAC, Digital SPDIF Coaxial, Local USB Drive, Bluetooth
USB Receiver chip: XMOS XU316, up to PCM 768kIIz/32bit, DSD512Bluetooth: BT 5.0 Receiver, supporting LDAC, aptX HID, aptX, AAC, SBCUSB
Drive Support: PCM 768kHz32bit, DSD512 -DSD (.iso, .dsf, .dff, - DSTnot supported)ISO/DXD/APE/FLAC/WAV/AIFF/ALF/DTS/MP3/WMA/AACOGG/ALAC/MP2/M4A/AC3/M3U/M3U8/OPUS
Outputs: Digital I2S, Digital SPDIF Coaxial, USB Audio, RCA & XR AnalogI2S Output: PCM 768kII, DSD512 (DSD64 for SACD Playback)USB Output: PCM 768kHz, DSD512 (Not supported for SACD Playback)
Coaxial SPDIF Output: PCM 192 kIIz, DoP DSD64 (Supported for SACD Playback)

Iine Out - RCA Output
Output Level: 2.45Vrms
Frequency Response: 20Hz-40kHz (-0.3dB)
TIID+N:0.15%
Crosstalk Rejection: 110dB
Dynamic Range: 117dB
Signal-to-Noise Ratio: 117dB
​
Line Out - XLR Output
Output Level: 4.9Vrms
Frequency Response: 201z-40kHz (-0.3dB)
THID+N:0.15%
ChannelSeparation: 110dB
Dynamic Range: 117dB
Signal-to-Noise Ratio: 117dB
