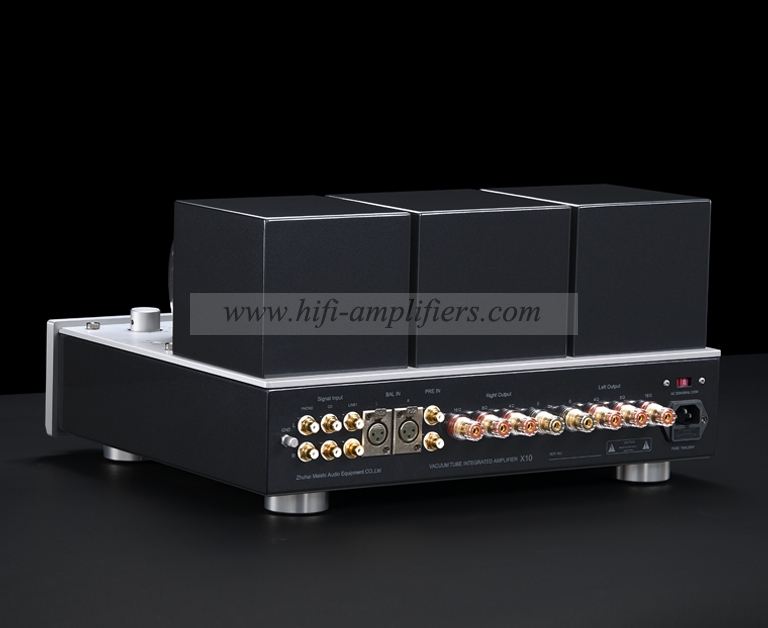

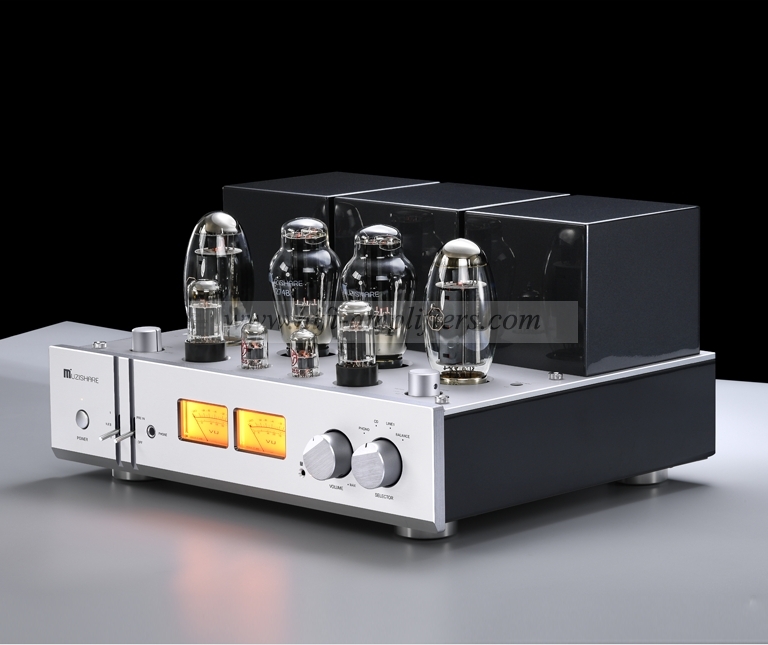

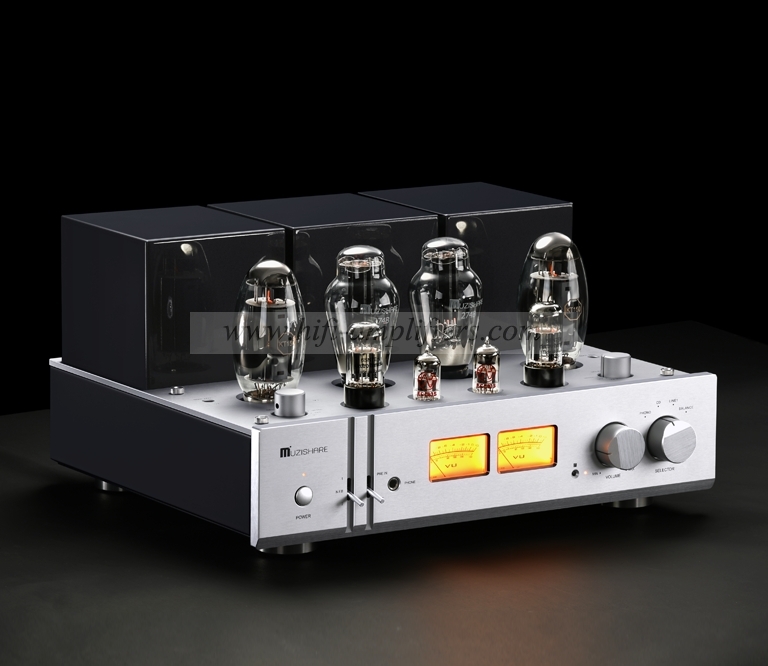

MUZISHARE X10 Class A Sinle-ended 300B KT150 Tube Integrated & Power Amplifier 2022 Version
All items ONE-YEAR WARRANTY !!!
We can Declare the Value of the Order as Customer's Remark!!!
MUZISHARE X10 Class A Sinle-ended 300B KT150 Tube Integrated & Power Amplifier 2022 Version 100% brand New
Notice: The tube amplifier must be connected to the speaker before running, otherwise the power amplifier may be damaged.
Output power: 25W+25W (RMS)
Harmonic distortion: 1% (1KHZ)
Frequency response: 10HZ～70KHZ (-1.5DB)
Input sensitivity: 150mv (-1.5db) / 180mV (-3db) / 1.5V (pre in)
Input impedance: 100KΩ
Signal to noise ratio: 92db
Output impedance: 4Ω 8Ω 16Ω
Left and right output balance: <1db
Machine power consumption: 220W
Use tube: ECC83×2, 6SN7×2, KT150×2, 274B× 2
Machine size (W×D×H): (430×393×228) mm
Net weight: 41Kg
Power supply voltage: 115v～230±10% (50/60Hz)
Working conditions: Temperature: 0℃～40℃ Humidity: 20%～80%
Storage conditions: Temperature: -20℃～70℃ Humidity: 20%～90%
1.Handmade, welded using scaffolding
2.Two high-quality, wide-frequency response and high-sound quality Japanese EI output transformers are used
3.Adopt high-power Z11 iron core EI power transformer specially designed for this machine.
4.The high-voltage part adopts 2 specially customized re-engraved XD 274B for full-ball rectification
5.The front stage uses two Czech ECC83 and 6SN7EH vacuum tubes each
6.The KT150 vacuum tube is used as a single-ended Class A power amplifier. It fully embodies the delicate, transparent, well-positioned and easy-to-control personality of KT150.
7.Peripheral KT150 power tube current adjustment knob
8.Left and right channel analog output level display, UV meter power tube current display
9.Infrared remote control electric potentiometer, volume and mute.
10.High-end Japanese ALPS electric potentiometer.
11.High-voltage start-up delay (about 30 seconds) and mute function
12.Use German Mondolfo M-CAP fever capacitor
13.Switch to pure power amplifier function, which can be connected to independent pre-amplified signal input.
14.Selection of working mode for pure post-stage and combined machine
15.Easy to install plug-in vacuum tube guard.
