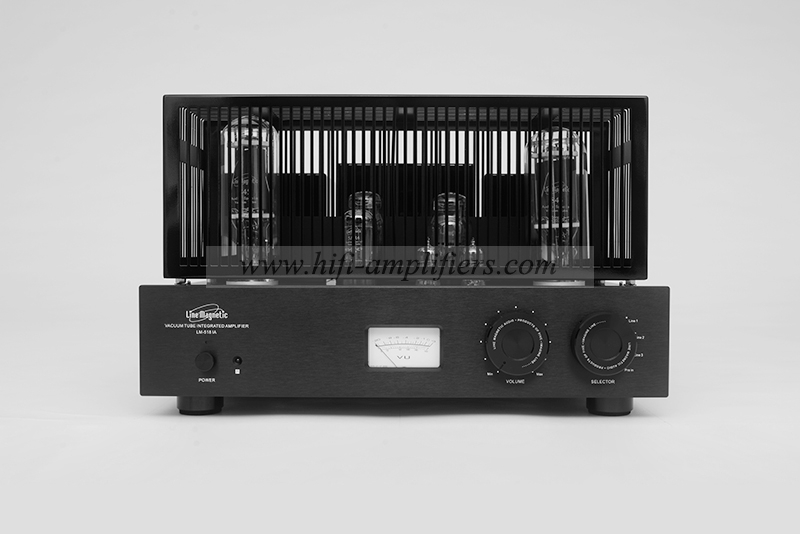

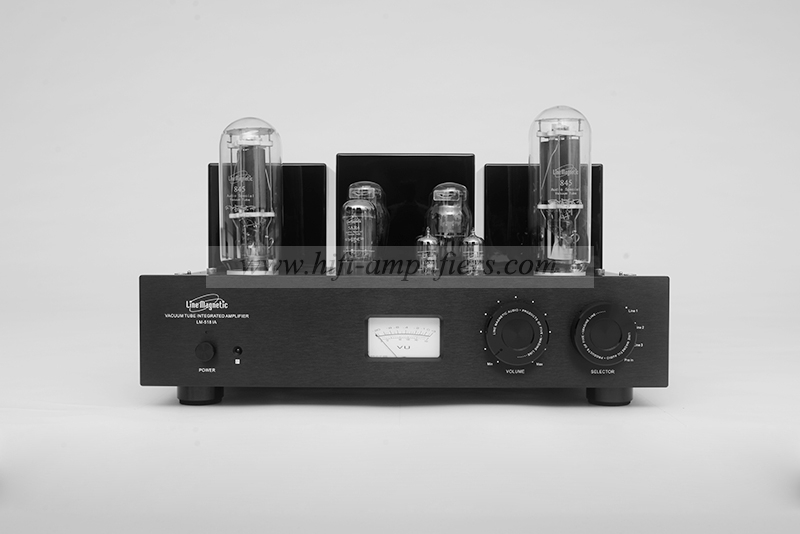

Line Magnetic LM-518IA Integrated Tube Amplifier 845*2 Class A Single-ended Amplifier 24W*2
All items ONE-YEAR WARRANTY !!!
We can Declare the Value of the Order as Customer's Remark!!!
●Twenty-two watts per channel, Single Ended Triode design, Pure Class A Integrated
Stereo Amplifier with 845 output power tubes.
●All tube Integrated with 12AX7 input tubes for voltage amplification, 6P3P driver tubes,
5AR4 rectifier tubes and 845 output tubes. Driver tubes 6P3P can also be replaced by
different kinds of driver tubes and you can select which tubes you prefer judging by

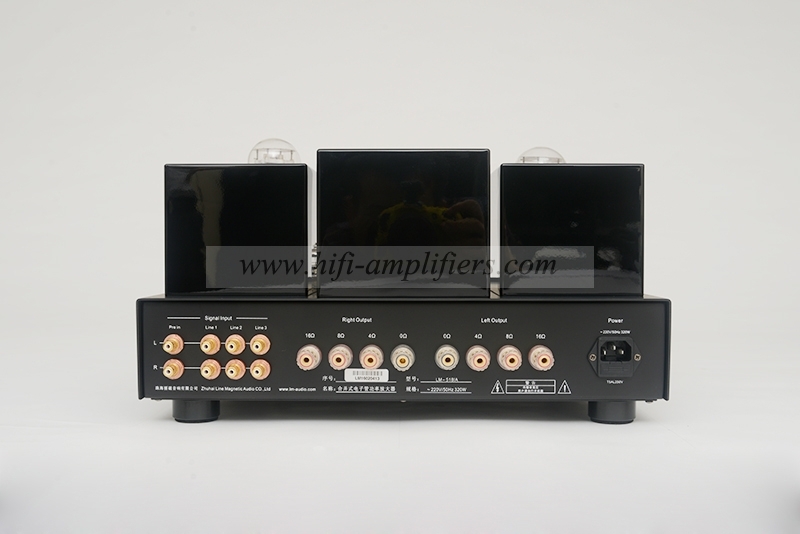

●4 pairs of inputs and speaker terminals for 4, 8 and 16 ohm speakers are located on the
●User bias control has been used for bias adjustment and one meter has been added to
the front plate to allow you to monitor bias with ease.
●External Hum Balance adjustment for sound adjustment.
●Specially designed EI transformers for power supply and two EI output transformers
with wide bandwidth are applied.
●JapaneseALPS volume potentiometer, German N-cap coupling capacitors etc Audio
grade components have been applied.
●Standard with remote control.
●Hand made construction with the finest point-to-point wiring.
●Soft Start and time-delay circuit. (30 seconds).
－Harmonic distortion: 1%(1kHZ) (A weighted)
－S/N Ratio：87dB(A weighted)
－Output impedance: 4 Ω, 8 Ω, 16 Ω
－Tube Complement：12AX7 x2、6P3P x2、845 x2、5AR4 x1
－Dimension (WxDxH)：430mm x 365mm x 250mm
－Net weight: 35kg
－Power Consumption: 320w
－Working conditions: temperature: 0 ℃ to 40 ℃ Moisture: 20% ~ 80%
－Storage conditions: temperature: - 20 ℃ ~ 70 ℃ Moisture: 20% ~ 90%
