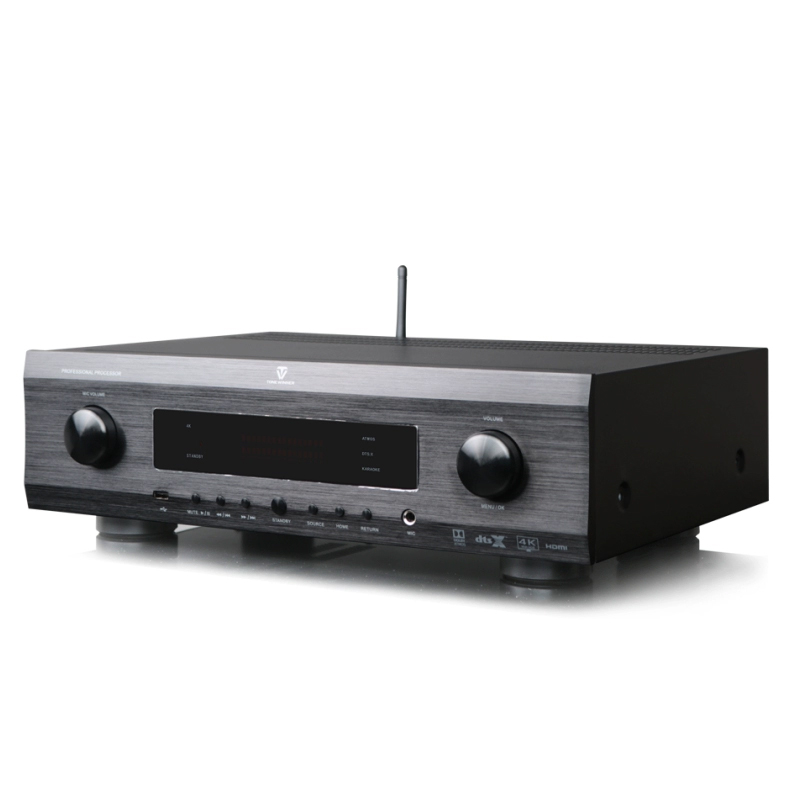

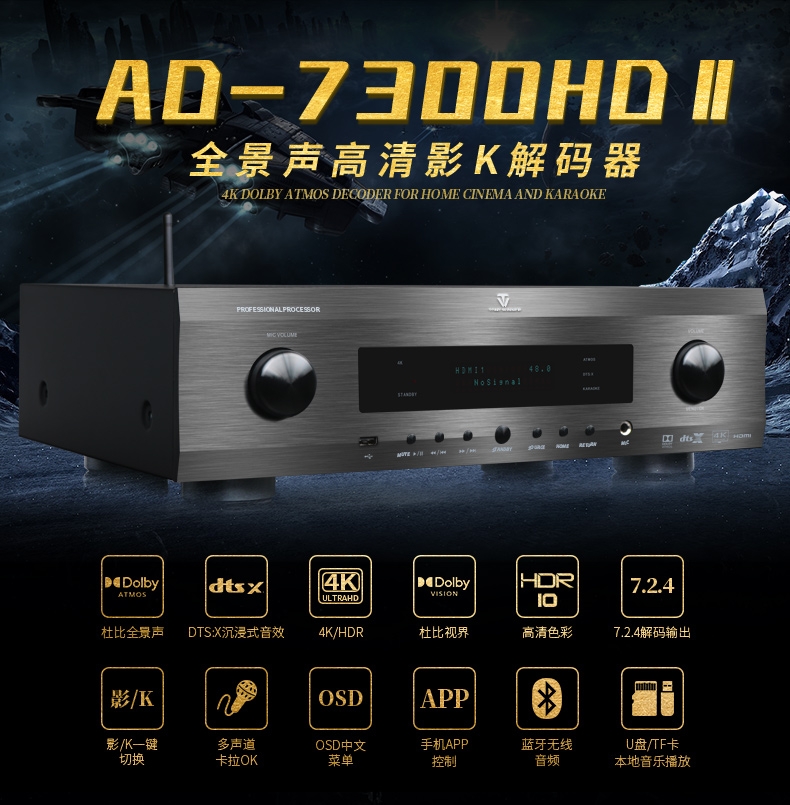

ToneWinner AD-7300HD II Procesador AV HD / Preamplificador Home-Theater Dolby Atmos 13 Canales 7.2.4

Product Introduction:

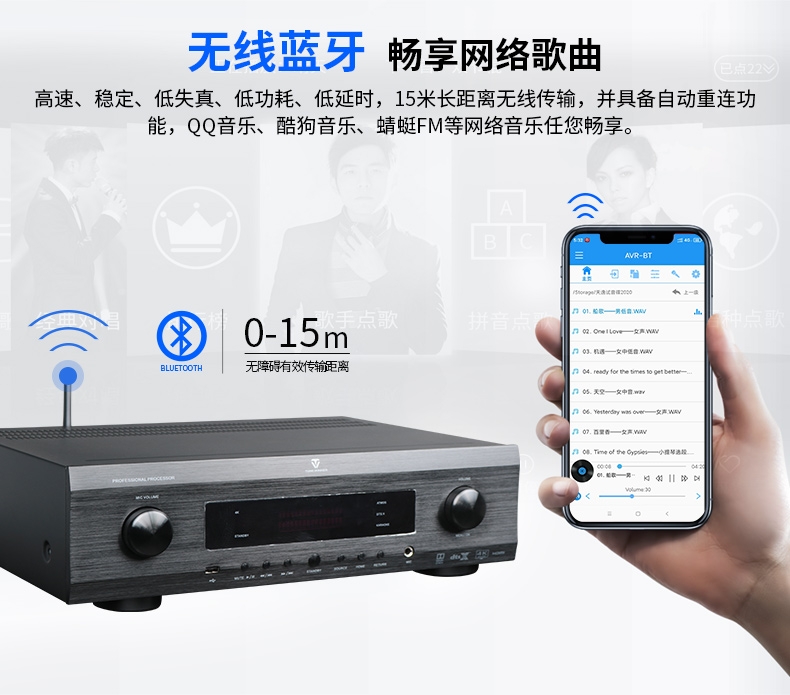

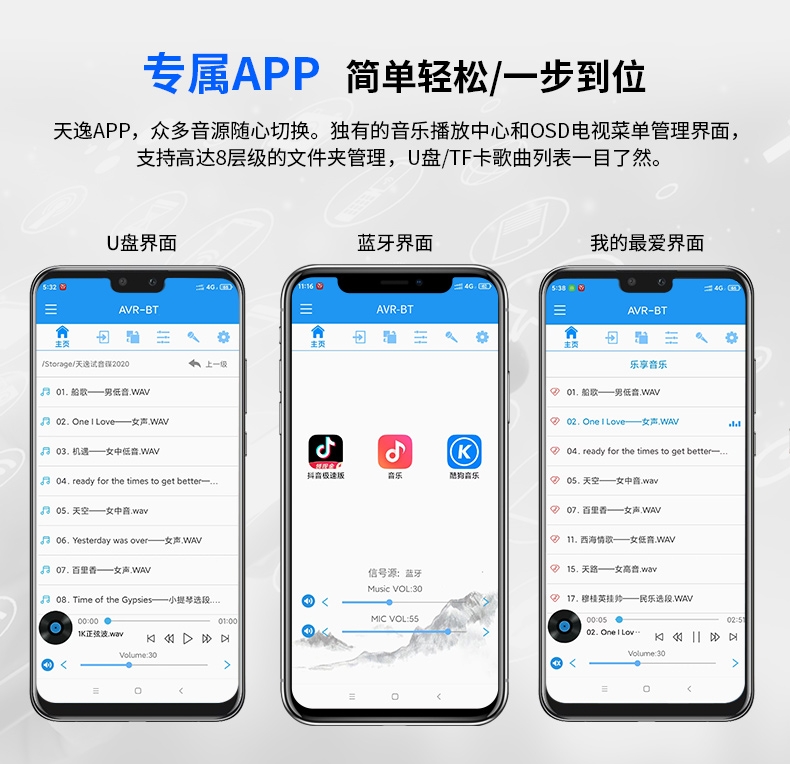

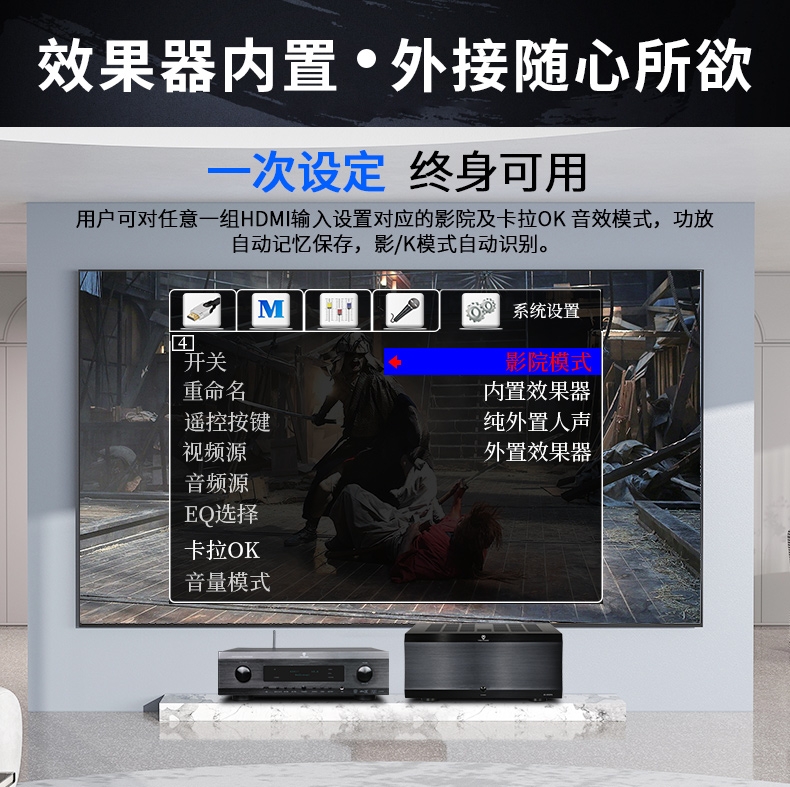

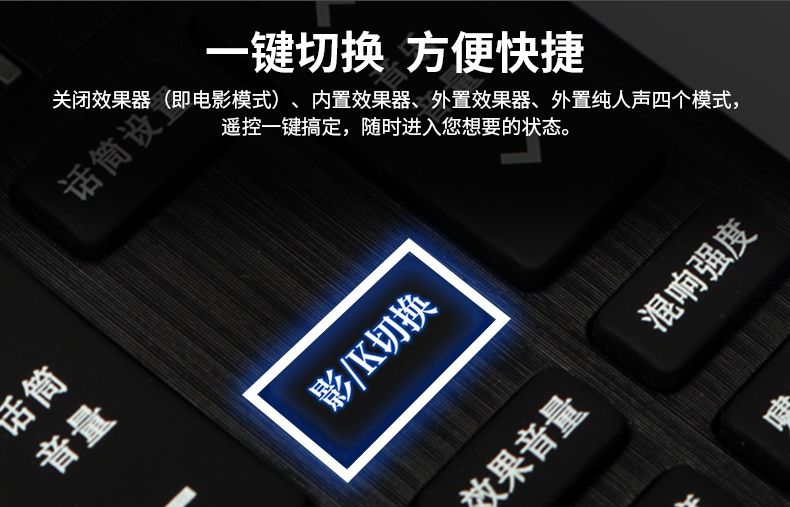

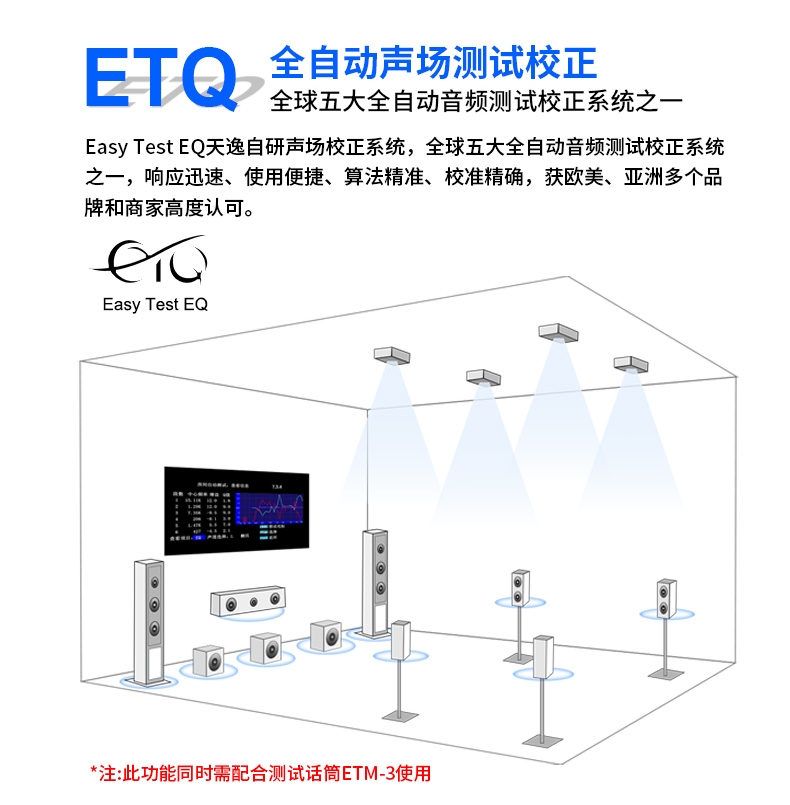

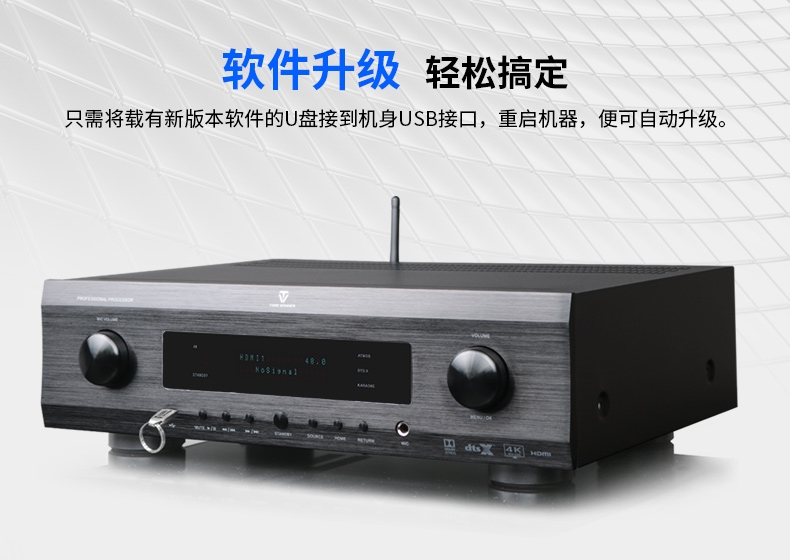

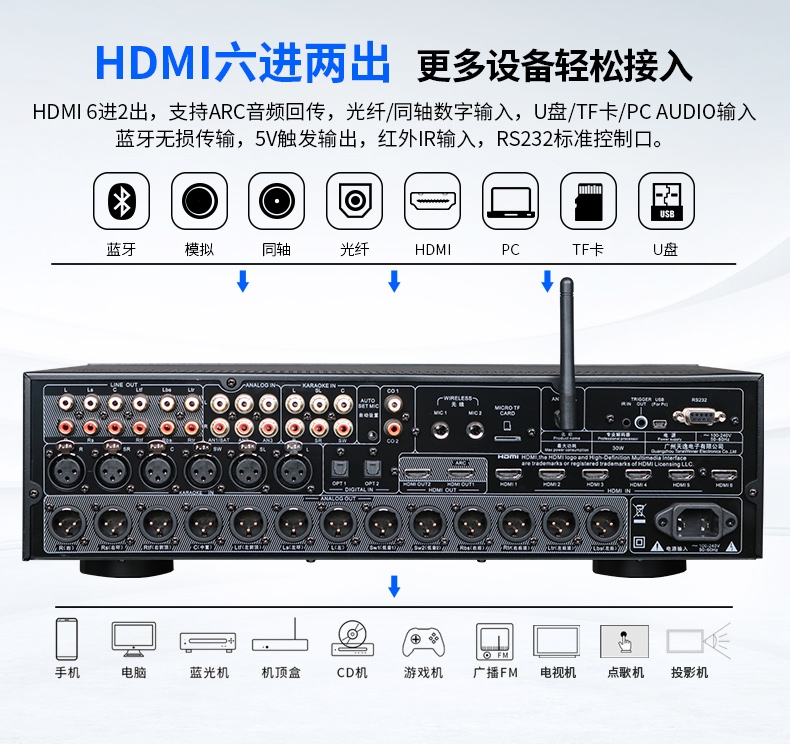

The AD-7300HDII is a panoramic audio and video pre-decoder designed for high-end private theaters, integrating a cinema, music center, and professional karaoke system into one. It supports Dolby Atmos and DTS:X immersive sound, 4K video technology, and is compatible with 3D, HDR10, Dolby Vision, and other video formats. It features a fully Chinese overlay menu, audio and video matrix grouping, intelligent room acoustic correction, and one-touch karaoke switching, ensuring easy setup and intuitive operation. It also supports local playback from USB flash drives and TF cards, and supports multiple lossless audio formats. With app control and Bluetooth lossless transmission, you can enjoy high-quality music anytime, anywhere. This is a comprehensive audio and video decoder center that meets the needs of high-end home entertainment.

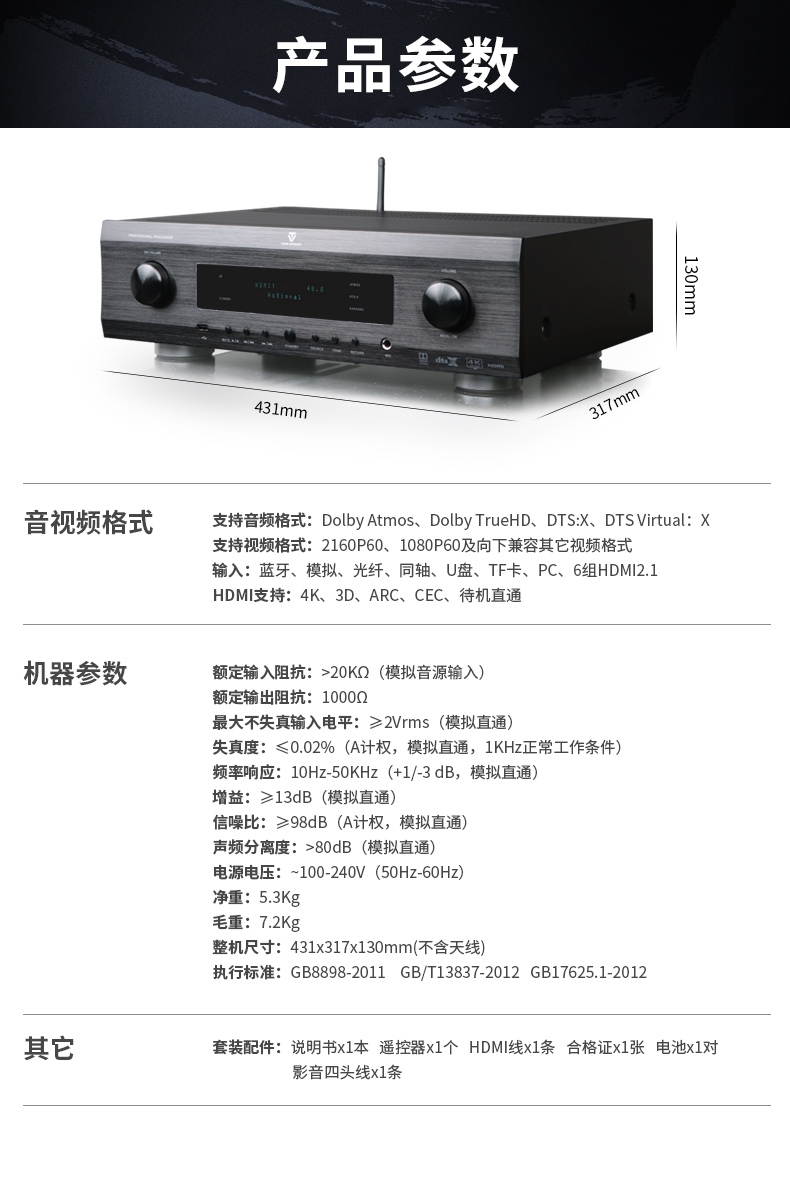

Product Performance Parameters:
Model: AD-7300HDII
Signal-to-Noise Ratio: ≥98dB (A-weighted, analog pass-through)
Distortion: ≤0.02% (A-weighted, analog pass-through, 1kHz normal operating conditions)
Frequency Response: 10Hz-50kHz (+1/-1dB, analog pass-through)
Gain: ≥13dB
Power Supply Voltage: ~100-240V (50Hz/60Hz)
Rated Input Impedance: ≥20kΩ (analog audio input)
Rated Output Impedance: 1kΩ
Audio Separation: >80dB (analog pass-through)
Maximum Undistorted Input Level: ≥2Vrms (analog pass-through)
Default Volume Control Range: "0 - 80"
Actual Gain Mode: "-65 - 15" (negative 65 to positive 15)
Net Weight: 5.3Kg
Gross Weight: 7.2Kg
Device Dimensions: 431 x 130 x 317 mm (W x H x D)
Packaging Dimensions: 545 x 418 x 208 mm (L x W x H)

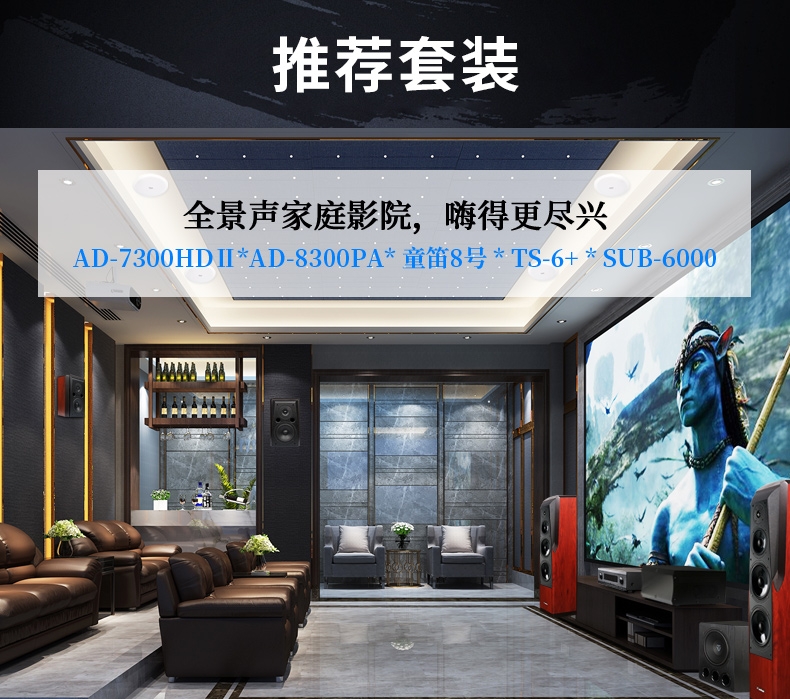

Applicable Locations: Cinema bars, karaoke rooms, multimedia conference rooms, entertainment centers, reception rooms, and other audio-visual rooms

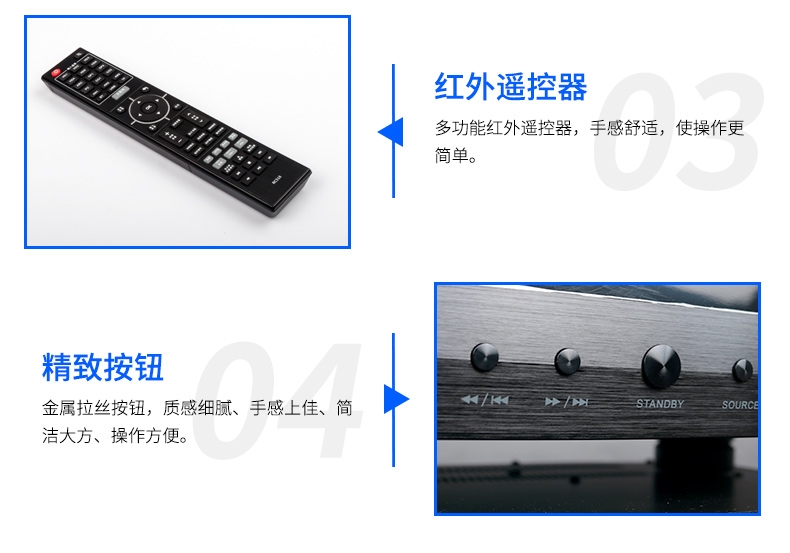

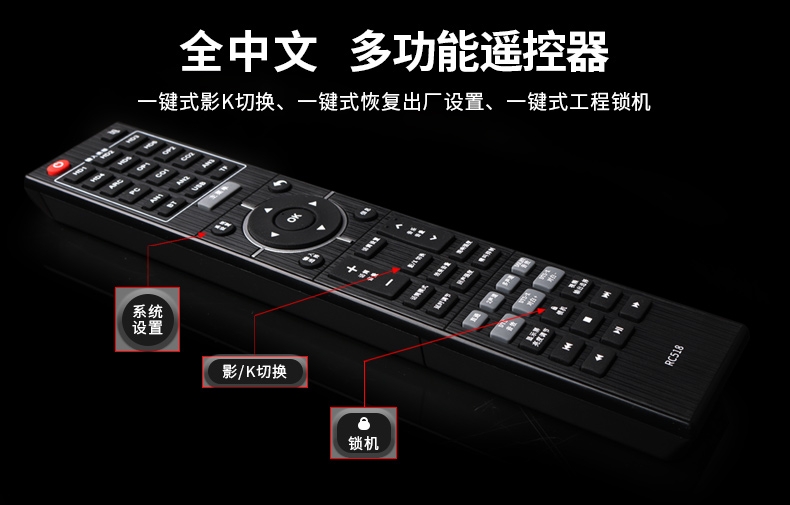

Included Accessories: Manual, remote control, HDMI cable, four-way audio/video cable, two-core power cord, certificate of conformity

​
